Garrett Ball Bearing Turbochargers
T04SR
60-1 Ball Bearing Turbocharger or CHRA Upgrade

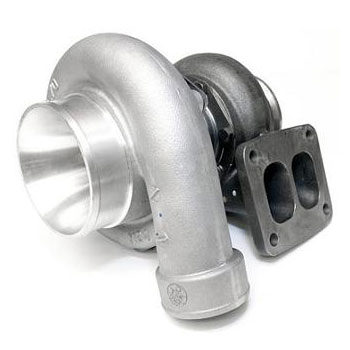

T04SR 60-1 Ball Bearing Turbocharger

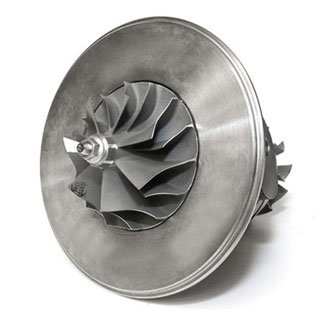

Garrett T04ZR Ball Bearing CHRA

Horsepower Rated 550 Plus


Features
  • Dual Ball Bearing
  • Oil & Water Cooled
  • Bullett Style Anti-Surge Inlet
  • 4" Inlet / 2½" Outlet Comp Cover
  • Large Range of Turbine Housings
  • GT4 Turbine Inlet
  • 3" V-Band Turbine Outlet
  • External Wastegate


Compressor Turbine

Inducer Ø: 59.3mm
Exducer Ø: 76.0mm
Trim: 60
A/R: 0.70
Wheel Ø: 74.2mm
Trim: 76
GT4: Optional
A/R: Optional


Map
T04SR 60-1 Compressor Map


Map
Unavailable

GARRETT  P/N: 757197


Note

Can be purchased as an outright complete Turbo or alternatively as a CHRA for customers whom have already installed a T04Z Journal Bearing Turbo & wish to upgrade to a Ball Bearing Turbocharger with minimum installation time & modifications to existing pipework, hoses etc.





Divider

RELATED PARTS

Oil Supply
Oil Supply Gasket  GOS-T34-01
  • Gasket Oil Supply
  • *Inc. with Turbo

Oil Supply Flange  FOS-T34-01
  • CNC Billet Aluminium Oil Feed Flange

Oil Drain
Oil Drain Gasket  GOD-T34-01
  • Gasket Oil Drain
  • *Inc. with Turbo

 Oil Drain Flange FOD-T34-01
  • CNC Billet Aluminium Oil Drain Flange

Water In-Out
GT Water Banjo Kit FBK-M1405
  • Banjo Fitting Kit: Suits 3/8" Water Hose
  • (1) Banjo Fiting 14mm Hole
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

M14 Turbo Banjo Kit FBK-M1407
    • M14 Universal Water Kit
    • M14 Banjo x ¼" NPT-F (1)
    • M14 x 1.50 Banjo Bolt (1)
    • M14 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting

Banjo Kit 14mm x 1.5 pitch FBK-M1410
  • Banjo Fitting Kit: Suits -6 AN Fitting
  • (1) Banjo Fiting 14mm Hole, -6 AN Male Flare
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

Exhaust In
 Gasket: Base T4 Divided S/S GT4D-01
  • GT4 Divided Stainless Steel Base Gasket
  • *Inc. with Turbo

GT4 Undivided S/S Base Gasket GT4U-01
  • GT4 Undivided Stainless Steel Base Gasket
  • *Inc. with Turbo

Exhaust Out
5" V-Band Weld Flange  FVB-003M
  • 3" V-Band Weld Flange - Mild Steel
  • CNC Machined From Solid Billet Stock

5" V-Band Weld Flange

FVB-003S
  • 3" V-Band Weld Flange - Stainless Steel
  • CNC Machined From Solid Billet Stock


 5" V-Band Clamp CVB-004
  • " V-Band Clamp
  • Heavy Duty
  • Stainless Steel

Wastegates
 Tial MV-R 44mm Wastegate T-MV-R
  • Tial 44mm Wastegate Kit:
  • Ultra Compact - 4.17" Tall
  • Water-Cooled Option Included
  • Default Red - .7 Bar (10.15 PSI)
  • Click Here for More Options


 Tial V60 Wastegate Kit T-V60
  • Tial V60 60mm Wastegate Kit
  • High Horsepower Applicationa
  • Flows 330 CFM @ 1psi Differential Pressure
  • Default Silver - .673 Bar (9.77 PSI)
  • Click Here for More Options

Other
Optional Polished Compressor Cover PCC-001
  • Polished Compressor Cover

Anti Surge Modification  ASCC-001
  • Anti-Surge Compressor Cover - Bullet Style

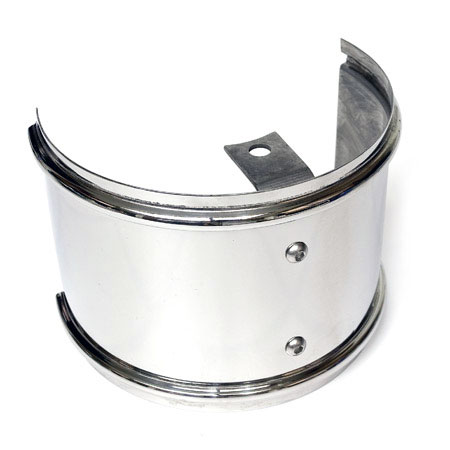

Garrett Heatshield Stainless  HS-GT2530R-BSS
  • Turbine Heatshield
  • Reduces Under Bonnet Temperatures
  • Protects Nearby Components - Wiring
  • Easy Installation - Vibration Free
  • Brushed Stainless Steel

Garrett Heatshield Stainless  HS-GT2530R-PSS
  • As Above in Polished Stainless Steel


Applicable Garrett Part Numbers

757197-0001, 757197-1, T04S, T04SR, Upgrade for 408105-388 CHRA
