Garrett Turbine Housings, Housings & Parts
Garrett GT40 / GT42 / GT47 Turbine Housings
Garrett GT40 / GT42 / GT47 Turbine Housings – a range of turbine housing sizes and A/R options to tune spool and top-end power. Enquire for fitment, pricing and availability.
Part No.
GT4R-D-EWG, GT4R-U-EWG, GT42R-D-EWG, GT42R6-D-EWG, GT47R6-U-EWG
Power
Up to
HP
Engine Size
Bearing
Wastegate
External Wastegate
Suits
Pricing & availability on request
Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.
Key features
Specifications
| Part / model number | GT4R-D-EWG, GT4R-U-EWG, GT42R-D-EWG, GT42R6-D-EWG, GT47R6-U-EWG |
|---|---|
| Power rating (from) | HP |
| Power rating (up to) | HP |
| Engine size | |
| Bearing | |
| Cooling | |
| Wastegate | External Wastegate |
| Fuel | |
| Suits | |
| Compressor inducer | |
| Compressor exducer | |
| Compressor trim | |
| Compressor A/R | |
| Turbine wheel | |
| Turbine trim | |
| Turbine A/R | |
| Turbine flanges |
Product details & options
GT4R-D-EWG Turbine Housing
Available options
| Model | Part no. |
|---|---|
| GT4R-D-EWG | GT4R-D-EWG |
| GT4R-U-EWG | GT4R-U-EWG |
| GT40R-D-EWG | GT4R-D-EWG |
| GT42R-D-EWG | GT42R-D-EWG |
| GT42R6-D-EWG | GT42R6-D-EWG |
| GT47R6-EWG | GT47R6-U-EWG |
GT4R-D-EWG
Specifications
- GT4 Turbine Inlet Divided
- 3″ V-Band Exhaust Outlet
- Externally Wastegated
- Available 1.06 A/R Only
Compatability
- GT3071R -60MM Turbine Wheel
- GT3076R -60MM Turbine Wheel
- GT3082R -60MM Turbine Wheel
- GT3582R
Garrett casting available in 1.06 A/R only. Specifically for a GT3582R but will also fit GT3071R, GT3076R & GT3082R with 60mm Turbine Wheels
RELATED ITEMS
GT4D-01
- GT4 Divided Base Gasket – Stainless Steel
CBK-M08125-2P
- Turbine Housing Clamp and Bolt Kit (1)
- Includes Two Half Circle Clamps & 6 bolts
FVB-003M
- 3″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
FVB-003S
- 3″ V-Band Weld Flange – Stainless Steel
- CNC Machined From Solid Billet Stock
CVB-003
- 3″ Heavy Duty Stainless Steel

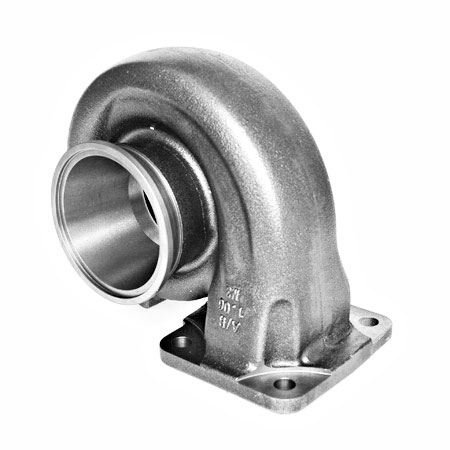

GT4R-U-EWG
Specifications
- GT4 Turbine Inlet Undivided
- 3″ V-Band Exhaust Outlet
- Externally Wastegated
- Available in 1.06 A/R
Compatability
- GT30R – GT3071R, GT3076R, GT3082R
- GT35R – GT3582R
Garrett casting 1.06 A/R to suit GT30R & GT35R. Please select your Turbo Model in the drop down menu.
RELATED ITEMS
GT4U-01
- GT4 Univided Base Gasket – Stainless Steel
CBK-M08125-2P
- Turbine Housing Clamp and Bolt Kit (1)
- Includes Two Half Circle Clamps & 6 bolts
FVB-003M
- 3″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
FVB-003S
- 3″ V-Band Weld Flange – Stainless Steel
- CNC Machined From Solid Billet Stock
CVB-003
- 3″ Heavy Duty Stainless Steel

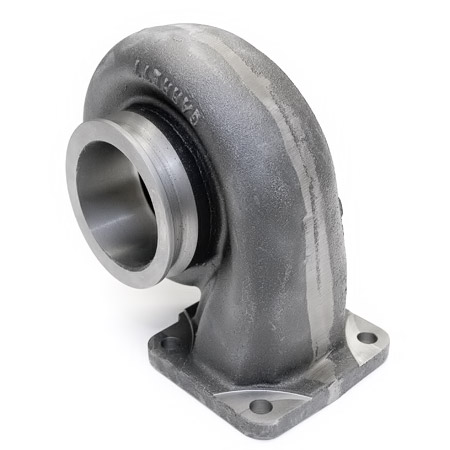

GT40R-D-EWG
Specifications
- GT4 Turbine Inlet Divided
- 3″ V-Band Exhaust Outlet
- Externally Wastegated
- Available .85 .95 1.06 & 1.19 A/R
Compatability
- GT4088R
- GT4094R
Turbine housing, Garrett cast. Direct replacement on GT40R. T4 divided inlet. 3″ V-band discharge. Please Specify A/R when ordering.
RELATED ITEMS
GT4D-01
- GT4 Divided Base Gasket – Stainless Steel
FVB-003M
- 3″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
FVB-003S
- 3″ V-Band Weld Flange – Stainless Steel
- CNC Machined From Solid Billet Stock
CVB-003
- 3″ Heavy Duty Stainless Steel

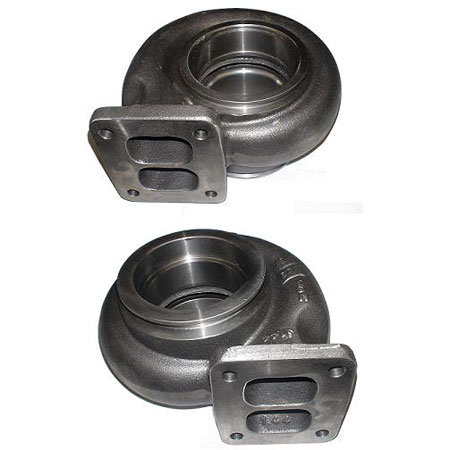

GT42R-D-EWG
Specifications
- GT4 Turbine Inlet Divided
- 4″ V-Band Exhaust Outlet
- Externally Wastegated
- Available 1.01, 1.15, 1.28, 1.44
Compatability
- GT42R
- GT42RS
- GT4202R
- GT4294R
Turbine Housing Garrett T4 flanged GT4202R/GT4294R, GT42R/RS, A/R 1.01, 1.15, 1.28, 1.44 A/R, T4 divided inlet, 4″ V-band discharge. Please Select A/R from Drop Down Menu
RELATED ITEMS
GT4D-01
- GT4 Divided Base Gasket – Stainless Steel
FVB-004M
- 4″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
FVB-004S
- 4″ V-Band Weld Flange – Stainless Steel
- CNC Machined From Solid Billet Stock
CVB-004
- 4″ Heavy Duty Stainless Steel

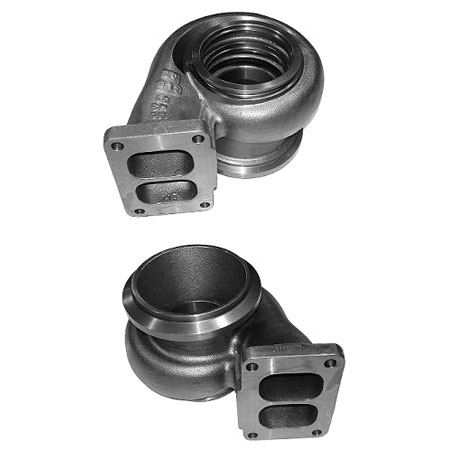

GT42R6-D-EWG
Specifications
- GT6 Turbine Inlet Divided
- 5″ V-Band Exhaust Outlet
- Externally Wastegated
- Available 1.01, 1.15
Compatability
- GT42R
- GT42RS
- GT4202R
- GT4294R
Turbine Housing Garrett T6 flanged GT4202R/GT4294R, GT42R/RS, A/R 1.01, 1.15 A/R, T6 divided inlet, 5″ V-band discharge. Please Select A/R from Drop Down Menu
RELATED ITEMS
GT6D-01
- GT6 Divided Base Gasket – Stainless Steel
FVB-005M
- 5″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
CVB-005
- 5″ Heavy Duty Stainless Steel

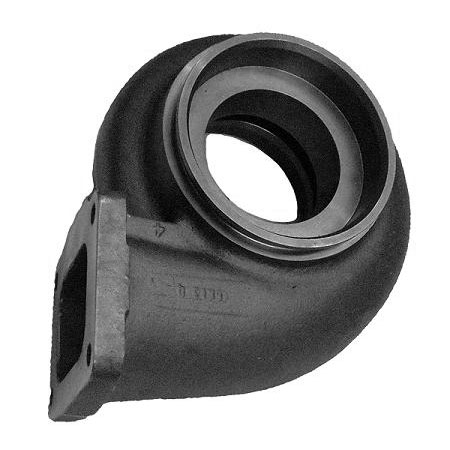

GT47R6-EWG
Specifications
- GT6 Turbine Inlet Divided
- 5″ V-Band Exhaust Outlet
- Externally Wastegated
- Available .96, 1.08, 1.23, 1.39
Compatability
- GT4708
- GT4718
- GT4708R
- GT4718R
Turbine Housing Garrett T6 flanged GT4708 / GT4708R / GT4718 / GT4718R A/R .96, 1.08, 1.23, 1.39 A/R, T6 Undivided Inlet, 5″ V-band discharge. Please Select A/R from Drop Down Menu
RELATED ITEMS
GT6U-01
- GT6 Undivided Base Gasket – Stainless Steel
FVB-005M
- 5″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
CVB-005
- 5″ Heavy Duty Stainless Steel
