Garrett T Series, Performance Turbochargers
Garrett T04ZR Ball Bearing Turbocharger
Garrett T04ZR Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 700–750 hp. Enquire with Procharge for sizing advice, pricing and availability.
Part No.
740759
Power
Up to
750
HP
Engine Size
Bearing
Dual Ball Bearing
Wastegate
Suits
Pricing & availability on request
Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.
Key features
Dual Ball Bearing
Oil & Water Cooled
Bullett Style Anti-Surge Inlet
4" Inlet / 2½" Outlet Comp Cover
Large Range of Turbine Housings
GT4 Turbine Inlet
3" V-Band Turbine Outlet
External Wastegate
Specifications
| Part / model number | 740759 |
|---|---|
| Power rating (from) | 700 HP |
| Power rating (up to) | 750 HP |
| Engine size | |
| Bearing | Dual Ball Bearing |
| Cooling | Oil & Water Cooled |
| Wastegate | |
| Fuel | |
| Suits | |

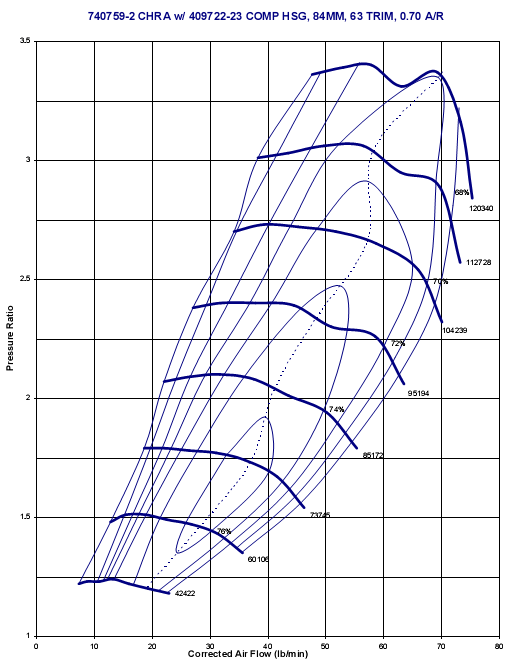

| Compressor inducer | 66.7mm |
| Compressor exducer | 84.0mm |
| Compressor trim | 63 |
| Compressor A/R | 0.70 |
| Turbine wheel | |
| Turbine trim | |
| Turbine A/R | |
| Turbine flanges |
Product details & options
PROCHARGE SELL ONLY 100% GENUINE GARRETT TURBOCHARGERS
INC 100% GENUINE GARRETT HOUSINGS !!!
| TURBO P/N: T04ZR-T | CHRA P/N: T04ZR-C |
RELATED PARTS
Oil Supply
Gos-T34-01
- Gasket Oil Supply
- *Inc. with Turbo
Fos-T34-01
- CNC Billet Aluminium Oil Feed Flange
Oil Drain
God-T34-01
- Gasket Oil Drain
- *Inc. with Turbo
Fod-T34-01
- CNC Billet Aluminium Oil Drain Flange
Water In-Out
FBK-M1405
- Banjo Fitting Kit: Suits 3/8″ Water Hose
- (1) Banjo Fiting 14mm Hole
- (1) Banjo Bolt, 14mm x 1.5 pitch
- (2) Crush Washers
FBK-M1407
- Suitable for Barb or Flare Nut Fitting
FBK-M1410
- Banjo Fitting Kit: Suits -6 AN Fitting
- (1) Banjo Fiting 14mm Hole, -6 AN Male Flare
- (1) Banjo Bolt, 14mm x 1.5 pitch
- (2) Crush Washers
Exhaust In
GT4D-01
- GT4 Divided Stainless Steel Base Gasket
- *Inc. with Turbo
GT4U-01
- GT4 Undivided Stainless Steel Base Gasket
- *Inc. with Turbo
Exhaust Out
FVB-003M
- 3″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
FVB-003S
- 3″ V-Band Weld Flange – Stainless Steel
- CNC Machined From Solid Billet Stock
CVB-004
- ” V-Band Clamp
- Heavy Duty
- Stainless Steel
Wastegates
T-MV-R
- Tial 44mm Wastegate Kit:
- Ultra Compact – 4.17″ Tall
- Water-Cooled Option Included
- Default Red – .7 Bar (10.15 PSI)
- Click Here for More Options
T-V60
- Tial V60 60mm Wastegate Kit
- High Horsepower Applicationa
- Flows 330 CFM @ 1psi Differential Pressure
- Default Silver – .673 Bar (9.77 PSI)
- Click Here for More Options
Other
PCC-001
- Polished Compressor Cover
HS-GT2530R-BSS
- Turbine Heatshield
- Reduces Under Bonnet Temperatures
- Protects Nearby Components – Wiring
- Easy Installation – Vibration Free
- Brushed Stainless Steel
HS-GT2530R-PSS
- As Above in Polished Stainless Steel
Applicable Garrett Part Numbers
740759-0002, 740759-2, T04Z, T04ZR
