Housings & Parts, Tial Turbine Housings
Tial Stainless Steel Turbine Housings
Tial Stainless Steel Turbine Housings – a range of turbine housing sizes and A/R options to tune spool and top-end power. Enquire for fitment, pricing and availability.
Part No.
Power
Up to
HP
Engine Size
Bearing
Wastegate
Suits
Pricing & availability on request
Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.
Key features
Aprox. 33% Turbo Weight Reduction
Cast Stainless Steel Provides a Beautiful Smooth Finish Inside & Out
Full V-Band Utilization Eliminates the Need for Bolts & Gaskets
V-Band Inlet Design Allows for Pivoting of the Turbo to Aid Clearance Issues & Tight Fits
Overall Turbine Housing Size is Smaller while Maintaining Greater Strength
Available in .63 & .86 A/R
Specifications
| Part / model number | |
|---|---|
| Power rating (from) | HP |
| Power rating (up to) | HP |
| Engine size | |
| Bearing | |
| Cooling | |
| Wastegate | |
| Fuel | |
| Suits | |
| Compressor inducer | |
| Compressor exducer | |
| Compressor trim | |
| Compressor A/R | |
| Turbine wheel | |
| Turbine trim | |
| Turbine A/R | |
| Turbine flanges |
Product details & options
Available options
| Model | Part no. |
|---|---|
| GT28R | – |
| GT30R | – |
| GT35R | – |
| GT42R | – |
| GT45R | – |
| GT55R | – |

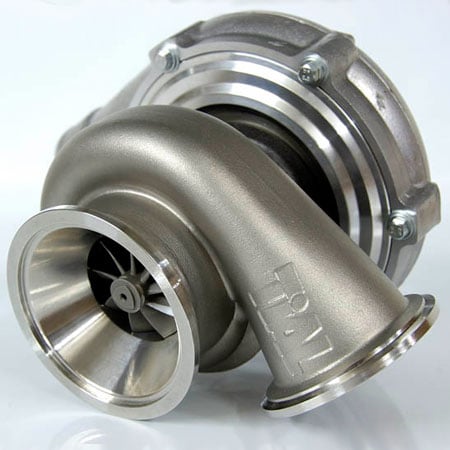

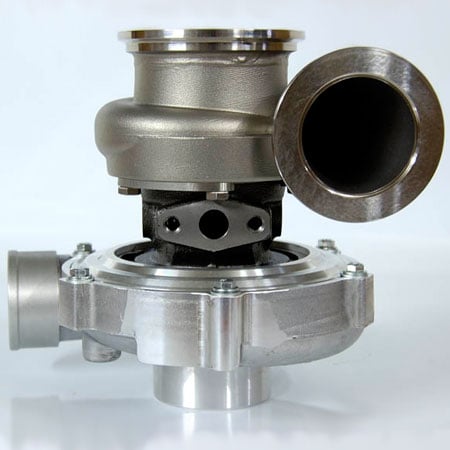

GT28R
Stainless Steel Turbine Housings
to suit: GARRETT GT28 – GTX28
Features:
Lightweight stainless steel turbine housings for the GT/X 28 series turbochargers, compatible with the 76 trim 53.9mm turbine wheel.
| Configuration: | |
|---|---|
| Flange Material | 304L Stainless Steel |
| Pipe Size | Inlet Flange 21/8″ OD Outlet Flange 3″ OD |
| Flange/Clamps Include | No |
| Housing Weight | 2.04 kgs (largest A/R) |
| Turbine Wheel | 53.9mm 76 Trim |
- Aprox. 33% Turbo Weight Reduction
- Cast Stainless Steel Provides a Beautiful Smooth Finish Inside & Out
- Full V-Band Utilization Eliminates the Need for Bolts & Gaskets
- V-Band Inlet Design Allows for Pivoting of the Turbo to Aid Clearance Issues & Tight Fits
- Overall Turbine Housing Size is Smaller while Maintaining Greater Strength
- Available in .63 & .86 A/R
Related Items:
FEI-T2530R
- TiAL Stainless V-Band Flange :
- Suits TiAL Stainless Turbine Housing
- Turbine Inlet (exhaust manifold side)
- Suits GT28R / GT30R / GT35R
CVB-GT2835-TI
- TiAL Stainless V-Band Clamp:
- Fits Above Flange
FEO-T2530R
- TiAL Stainless V-Band Flange:
- Suits TiAL Stainless Turbine Housing
- Turbine Outlet (dump pipe side)
- Suits GT28R / GT30R / GT35R
CVB-GT2835-TO
- TiAL Stainless V-Band Clamp:
- Fits Above Flange
GT30R
STAINLESS STEEL TURBINE HOUSINGS
to suit: GARRETT GT30 – GTX30
Features:
Lightweight stainless steel turbine housings for the GT/X 30 series turbochargers. Compatible with the 60mm 84 trim turbine wheel.
| Configuration: | |
|---|---|
| Flange Material | 304L Stainless Steel |
| Pipe Size | Inlet Flange 21/8″ OD Outlet Flange 3″ OD |
| Flange/Clamps Include | No |
| Flange Weight | 2.63 kgs (largest A/R) |
| Turbine Wheel | 60mm 84 Trim |
Note for GT3071R: This housing only works with a 700177-5022 CHRA, the 700177-5023 CHRA heat shield is not compatible.
- Aprox. 33% Turbo Weight Reduction
- Cast Stainless Steel Provides a Beautiful Smooth Finish Inside & Out
- Full V-Band Utilization Eliminates the Need for Bolts & Gaskets
- V-Band Inlet Design Allows for Pivoting of the Turbo to Aid Clearance Issues & Tight Fits
- Overall Turbine Housing Size is Smaller while Maintaining Greater Strength
- Available in .63, .82 & 1.06 A/R
Related Items:
nettikasinolla tervetuliaisbonuksesta joten paaset nauttimaan voitonhuumasta heti. title=”Flange Exhaust Inlet Tial GT25R GT28R GT30R GT35R” width=”100″ style=”vertical-align: middle; border: 0px;” />
FEI-T2530R
- Tial Stainless V-Band Flange:
- Suits Tial Stainless Turbine Housing
- Turbine Inlet (exhaust manifold side)
- Suits GT28R / GT30R / GT35R
CVB-GT2835-TI
- Tial Stainless V-Band Clamp:
- Fits Above Flange
FEO-T2530R
- Tial Stainless V-Band Flange:
- Suits Tial Stainless Turbine Housing
- Turbine Outlet (dump pipe side)
- Suits GT28R / GT30R / GT35R
CVB-GT2835-TO
- Tial Stainless V-Band Clamp:
- Fits Above Flange

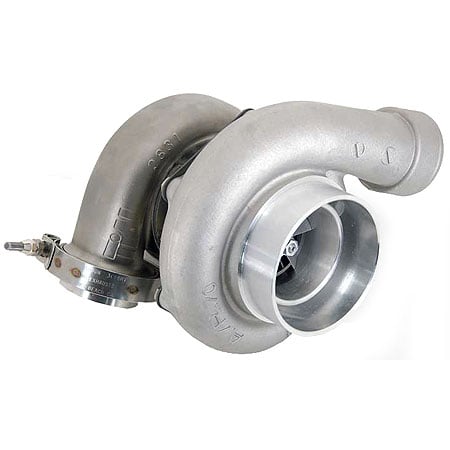

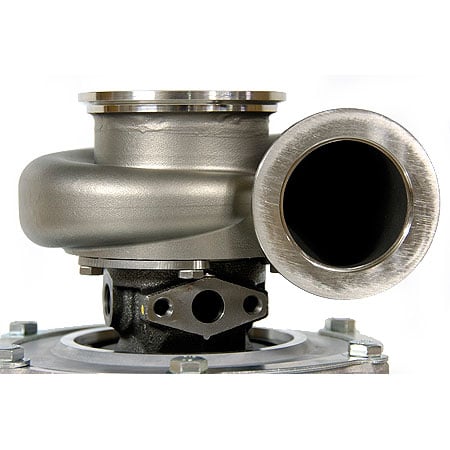

GT35R
Stainless Steel Turbine Housings
to suit: GARRETT GT35 – GTX35
Features:
Lightweight stainless steen turbine housing for the GT/X 35 series turbochargers. Compatible with the 68mm 84 trim turbine wheel.
| Configuration: | |
|---|---|
| Flange Material | 304L Stainless Steel |
| Pipe Size | Inlet Flange 21/8″ OD Outlet Flange 3″ OD |
| Flange/Clamps Include | No |
| Flange Weight | 2.04 kgs (largest A/R) |
| Turbine Wheel | 53.9mm 76 Trim |
- Aprox. 33% Turbo Weight Reduction
- Cast Stainless Steel Provides a Beautiful Smooth Finish Inside & Out
- Full V-Band Utilization Eliminates the Need for Bolts & Gaskets
- V-Band Inlet Design Allows for Pivoting of the Turbo to Aid Clearance Issues & Tight Fits
- Overall Turbine Housing Size is Smaller while Maintaining Greater Strength
- Available in .63, .82 & 1.06 A/R
Related Items:
FEI-T2530R
- Tial Stainless V-Band Flange:
- Suits Tial Stainless Turbine Housing
- Turbine Inlet (exhaust manifold side)
- Suits GT28R / GT30R / GT35R
CVB-GT2835-TI
- Tial Stainless V-Band Clamp:
- Fits Above Flange
FEO-T2530R
- Tial Stainless V-Band Flange
- Suits Tial Stainless Turbine Housing
- Turbine Outlet (dump pipe side)
- Suits GT28R / GT30R / GT35R
CVB-GT2835-TO
- Tial Stainless V-Band Clamp:
- Fits Above Flange

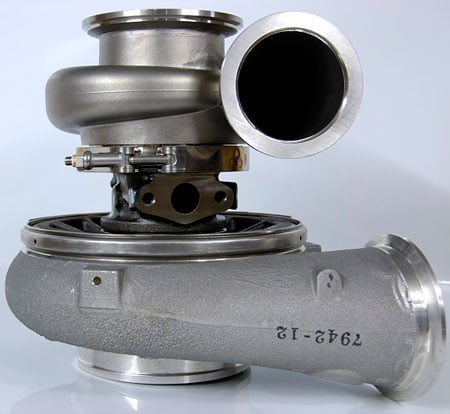

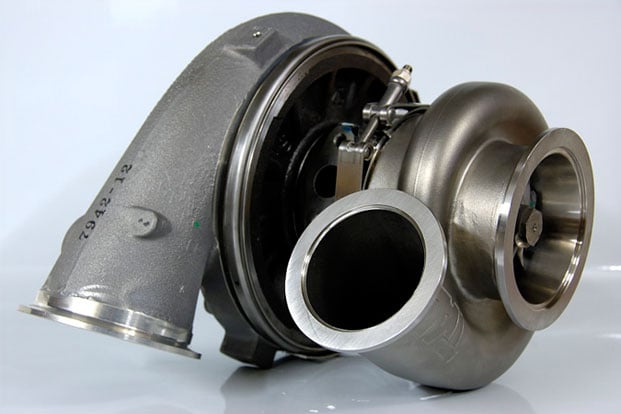

GT42R
Stainless Steel Turbine Housings
to suit: GARRETT GT42 – GTX42
Features:
Lightweight stainless steel turbine housing for the GT/X 42 series turbochargers. Compatible with the 82mm 84 trim turbine wheel.
| Configuration: | |
|---|---|
| Flange Material | 304L Stainless Steel |
| Pipe Size | Inlet Flange 2¾” OD Outlet Flange 3″ OD |
| Flange/Clamps Include | No |
| Housing Weight | 6.03 kgs (largest A/R) |
| Turbine Wheel | 82mm 84 Trim |
- Aprox. 33% Turbo Weight Reduction
- Cast Stainless Steel Provides a Beautiful Smooth Finish Inside & Out
- Full V-Band Utilization Eliminates the Need for Bolts & Gaskets
- V-Band Inlet Design Allows for Pivoting of the Turbo to Aid Clearance Issues & Tight Fits
- Overall Turbine Housing Size is Smaller while Maintaining Greater Strength
- Available in 1.02, 1.16 & 1.30 A/R
Related Items:
FEI-T4042R
- Tial Stainless V-Band Flange:
- Suits Tial Stainless Turbine Housing
- Turbine Inlet (exhaust manifold side)
- Suits GT40R / GT42R
CVB-GT4042-TI
- Tial Stainless V-Band Clamp:
- Fits Above Flange
FEO-T4042R
- Tial Stainless V-Band Flange:
- Suits Tial Stainless Turbine Housing
- Turbine Outlet (dump pipe side)
- Suits GT40R / GT42R
CVB-GT4042-TO
- Tial Stainless V-Band Clamp:
- Fits Above Flange
GT45R
to suit: GARRETT GT45 – GTX45
Features:
Lightweight stainless steel turbine housing for the GT/X 45 series turbocharger. Compatible with the 87mm 85 trim turbine wheel.
Note: We also offer an 84 trim 87mm 10 blade contour for the GT4594R CHRA.
| Configuration: | |
|---|---|
| Flange Material | 304L Stainless Steel |
| Pipe Size | Inlet Flange 2¾” OD Outlet Flange 4″ OD |
| Flange/Clamps Include | No |
| Housing Weight | 6.03 kgs (largest A/R) |
| Turbine Wheel | 87mm 85 Trim, 87mm 84mm 10 Blade |
- Aprox. 33% Turbo Weight Reduction
- Cast Stainless Steel Provides a Beautiful Smooth Finish Inside & Out
- Full V-Band Utilization Eliminates the Need for Bolts & Gaskets
- V-Band Inlet Design Allows for Pivoting of the Turbo to Aid Clearance Issues & Tight Fits
- Overall Turbine Housing Size is Smaller while Maintaining Greater Strength
- Available in 1.02, 1.16 & 1.30 A/R
GT55R
Stainless Steel Turbine Housings
to suit: GARRETT GT55 – GTX55
Features:
Lightweight stainless steel turbine housing for the GT/X 55 series turbochargers, compatible with the 111.5mm 84 trim turbine wheel.
- Aprox. 33% Turbo Weight Reduction
- Cast Stainless Steel Provides a Beautiful Smooth Finish Inside & Out
- Full V-Band Utilization Eliminates the Need for Bolts & Gaskets
- V-Band Inlet Design Allows for Pivoting of the Turbo to Aid Clearance Issues & Tight Fits
- Overall Turbine Housing Size is Smaller while Maintaining Greater Strength
- Available in 1.15 & 1.30 A/R
