Garrett Ball Bearing Turbochargers
Ball Bearing Turbocharger

GTX4202R Ball Bearing Turbocharger


Horsepower Rated 550-950

Engine Displacement
2.0L - 8.0L

  • 10%+ Overall Gain Over GT Series
  • Dual Ball Bearing
  • Oil & Water Cooled
  • 5" Compressor Inlet
  • V-Band Compressor Outlet
  • 11 Full-Blade Forged & Machined Billet C-Wheel
  • Optional Turbine Housings Available
  • External Wastegate

Compressor Turbine

Inducer Ø: 70.3mm
Exducer Ø: 94.0mm
Trim: 56
A/R: 0.60

Wheel Ø:
Trim: 84.00
A/R: See Below
External Wastegate

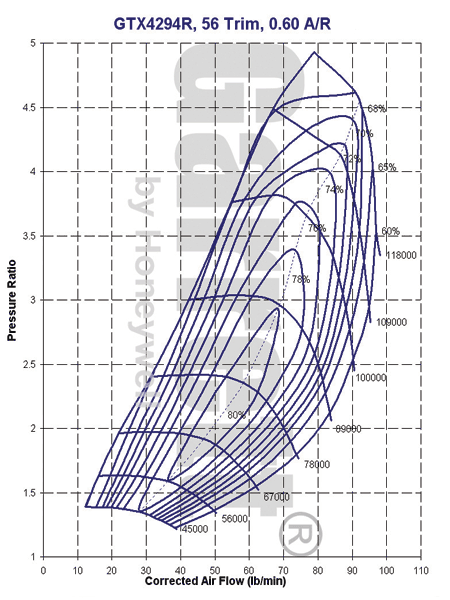

GTX4294R Compressor Map

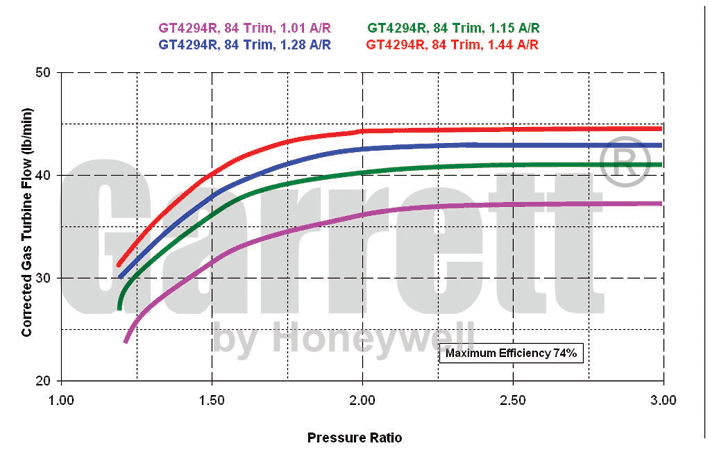

GTX4204R Turbine Maps

GT4202R vs GTX4202R

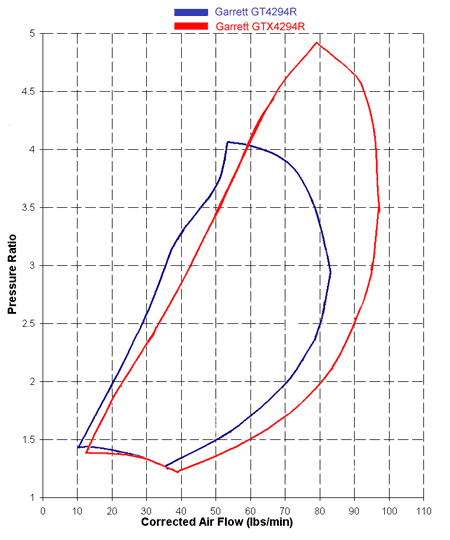

GT4294R vs GTX4294R Compressor Maps

Optional Turbine Housing

4" V-band Outlet

T4 Divided 1.01 A/R
T4 Divided 1.15 A/R
T4 Divided 1.28 A/R
T4 Divided 1.44 A/R

5" V-Band Oulet

T6 Divided 1.01 A/R
T6 Divided 1.15 A/R

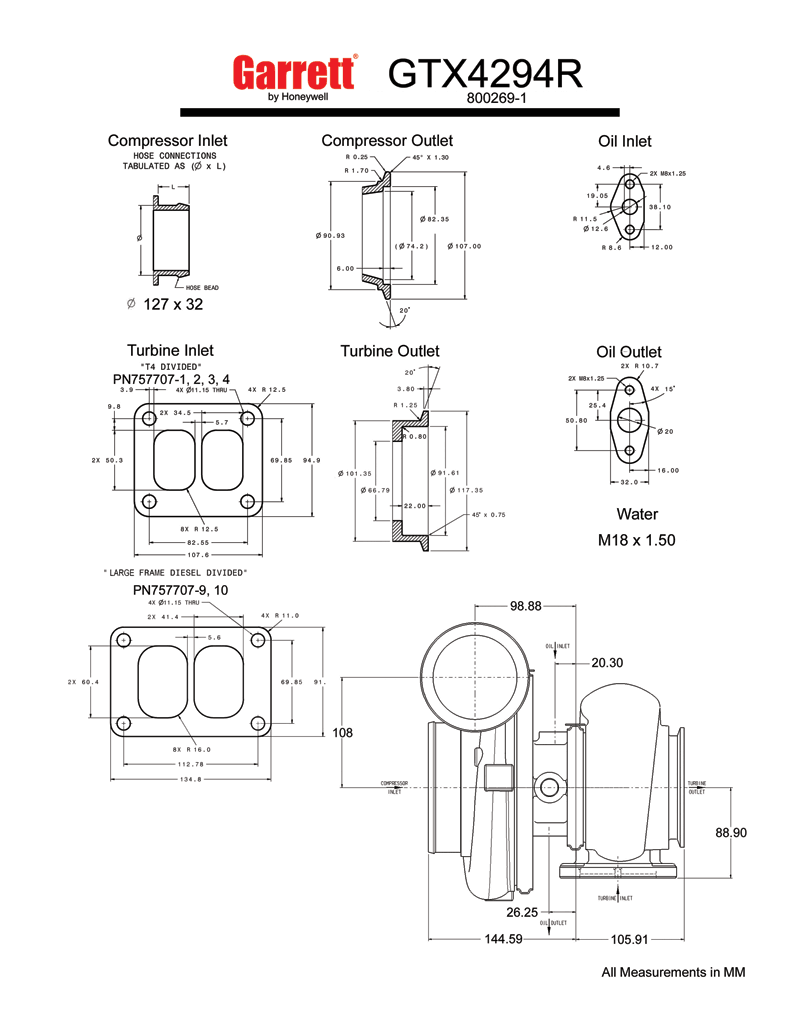

Click for Flange Dimensions
GARRETT P/N: 800269



Garrett's New Ultra Hi-Flow GTX Compressor Wheel
11 Full-Blade Forged & Machined Billet
Click Image for a Closer View ->

GTX Compressor Wheel


Free Delivery Australia Wide

P/N: GTX4294R

Specify Turbine Housing



Tial V-Band Turbine Housing Tial Dual V-Band Housing
External Wastegate (EWG)
Available in 1.01 A/R
Stainless Steel - Lightweight

Oil Inlet
Oil Supply Gasket  GOS-T34-01
  • Gasket Oil Supply
  • *Inc. with Turbo
Oil Supply Flange  FOS-T34-01
  • CNC Billet Aluminium Oil Feed Flange
Oil Drain
Oil Drain Gasket  GOD-T34-01
  • Gasket Oil Drain
  • *Inc. with Turbo
 Oil Drain Flange FOD-T34-01
  • CNC Billet Aluminium Oil Drain Flange
  • 1/2" NPT Female Thresd
Air Oulet
 Flange: GT42 Compressor Outlet Adaptor Kit FCO-005K
  • 3.5" Compressor Outlet Flange Kit
  • Slip on 3.5" Hose or Weld to Outlet Pipe
  • Machined to Support an O-Ring
  • Adaptor, O-Ring & V-Band Clamp Included in Kit
  • Typically for GT42, GT42R, GT42RS Turbos
Water In-Out
Fitting Kit: Water - M18 x 1.50 FBK-M1805
  • M18 Universal Water Kit
  • M18 Banjo x 3/8 NPT-F (1)
  • M18 x 1.50 Banjo Bolt (1)
  • M18 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting
Exhaust Inlet
 Gasket: Base T4 Divided S/S GT4D-01
  • GT4 Stainless Steel Base Gasket
  • *Inc. with Turbo
Gasket: Base T4 Divided S/S GT6D-01
  • GT6 Stainless Steel Base Gasket
  • *Inc. with Turbo
Exhaust Outlet
5" V-Band Weld Flange  FVB-004M
  • 4" V-Band Weld Flange - Mild Steel
  • CNC Machined From Solid Billet Stock
5" V-Band Weld Flange  FVB-004S
  • As Above - Stainless Steel
 5" V-Band Clamp CVB-004
  • 4" V-Band Clamp
  • Heavy Duty
  • Stainless Steel
5" V-Band Weld Flange  FVB-005M
  • 5" V-Band Weld Flange - Mild Steel
  • CNC Machined From Solid Billet Stock
5" V-Band Weld Flange FVB-005S
  • As Above - Stainless Steel
  Awaiting Stock
5" V-Band Clamp CVB-005
  • 5" Heavy Duty Stainless Steel
 Tial V60 Wastegate Kit T-V60-D
  • Tial V60 60mm Wastegate Kit
  • Default Colour - Silver
  • Default Spring - .673 Bar - 9.77 PSI
  • Click Here for More Options!
Applicable Garrett Part Numbers
800269-0001, 800269-1, 451888-0043, 451888-43
