Garrett Ball Bearing Turbochargers
GTX3071R
Dual Ball Bearing Core & Cover

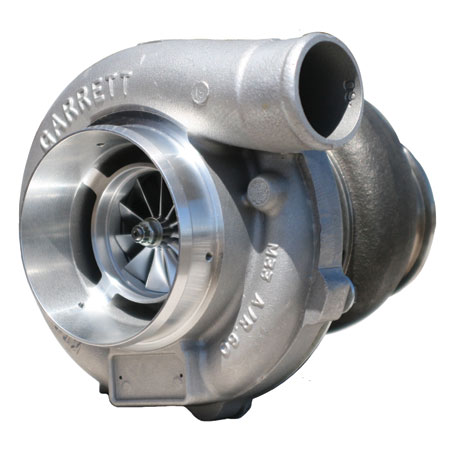

Garrett GT3071R Ball Bearing Turbocharger


* Image Above Shows a Turbine Housing which is NOT Included in the Cost!
Sample Image of a CHRA with Compressor Cover
* Sample Image Above Shows a Core (CHRA) & Compressor Cover as the GTX Unit is Supplied!

Horsepower Rated 340 to 560
Twin-Turbo 1000hp +

Displacement
1.8L - 3.0L Engines


Features:
  • Dual Ball Bearing
  • Oil & Water Cooled
  • Forged, Fully-Machined Compressor Wheel Featuring Next-Generation GTX Aerodynamics
  • Compressor Wheel is 11 Full-Blade Design
  • Ported Shroud Compressor Housing to Increase Surge Resistance
  • This Unit is Outline Interchangeable on Turbine Side with GT3071R
  • Optional Turbine Housings Available

Compressor Turbine Ultra Hi-Flow Comp Wheel

Inducer Ø: 54.1mm
Exducer Ø: 71.4mm
Trim: 58
A/R: 0.60


Wheel Ø: 60.0mm
Trim: 84
A/R: Optional
Type: Optional

GTX Compressor Wheel
Map Maps GT3071R vs GTX3071R

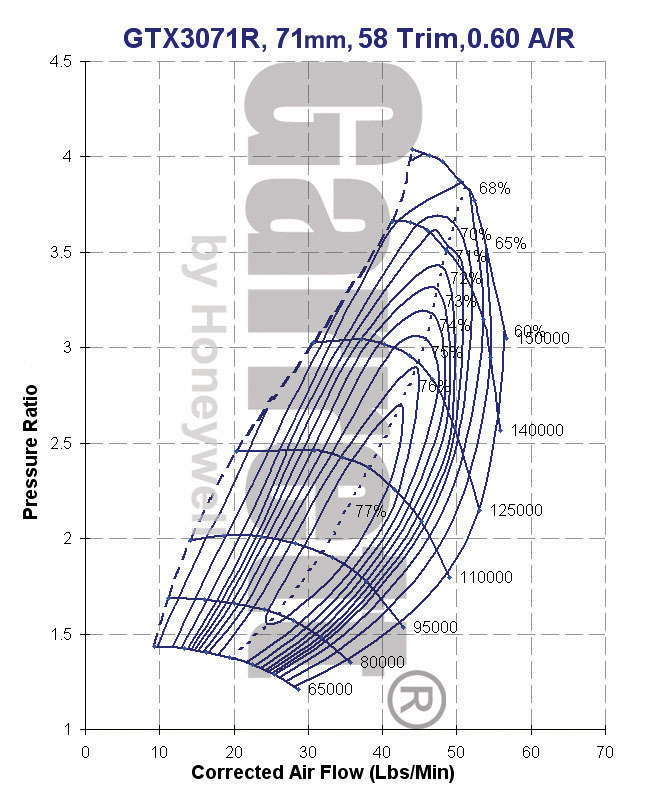

 GTX3071R Compressor Map GTX3071R Turbine Maps  GT3071R vs GT3076R Overlay Map

Click for Flange Dimensions

GARRETT P/N: 803712

Note

Garrett supply this GTX Unit as a Core (CHRA) & Compressor Cover as an Optional Upgrade to bolt into existing GT Turbos. GTX Turbos use same Turbine Housing as GT Turbos and Turbine Housings are sold separately!


Free Delivery Australia Wide



 Applicable Garrett Part Numbers
803712-0001, 803712-1, 700177-0046, 700177-46

Divider

TURBINE HOUSING OPTIONS - NOT included in above cost!



Click on an Image for Further Details (Opens in a New Window!)


GT28 "Plus" with GT3 Full Flow

GT28 "Special" with GT3 Full Flow

GT3 V-Band Undivided

GT28R Plus Turbine Housing External Wastegate 2 1/2 GT28R Turbine Housing   GT3 Undivided Turbine Housing 3
  • GT28 Flanged Inlet
  • Undivided
  • External Wastegate
  • 2.5" V-Band Outlet
  • .63 / .82 A/R
  • GT28 Flanged Inlet
  • Undivided
  • External Wastegate (44mm)
  • 5 Bolt Outlet
  • .72 A/R ONLY
  • GT3 Flanged Inlet
  • Undivided
  • External Wastegate
  • 3" V-Band Outlet
  • .63 / .82 / 1.06 A/R

GT3 V-Band Divided

GT3 Internal Wastegate

GT4 V-Band Undivided

GT3 Divided Turbine Housing V-Band GT3 IWG Turbine Housing GT4 Turbine Housing Undivided 3
  • GT3 Flanged Inlet
  • Divided
  • External Wastegate
  • 3" V-Band Outlet
  • .82 / 1.06 A/R
  • GT3 Flanged Inlet
  • Undivided
  • Internal Wastegate
  • Actuator & Bracket NOT included
  • .63 / .82 / 1.06 A/R
  • GT4 Flanged Inlet
  • Undivided
  • External Wastegate
  • 3" V-Band Outlet
  • 1.06 A/R ONLY

TIAL Cast Stainless





Tial Stainless Turbine Housing
  • Dual V-Band
  • Undivided
  • External Wastegate
  • 3" V-Band Outlet
  • .63 / .82 / 1.06 A/R

Divider

RELATED PARTS

Oil Supply
GT Oil Supply Line Kit H-OSB-314K
  • Low Profile Oil Supply Line Kit - 14"

H-OSB-322K
  • Low Profile Oil Supply Line Kit - 22"

H-OSB-332K
  • Low Profile Oil Supply Line Kit - 32"

H-OSB-348K
  • Low Profile Oil Supply Line Kit - 48"

Oil Drain Options
 GT28R Oil Drain Gasket GOD-GT2535-01
  • Oil Drain Gasket
  • *Inc. with Turbo

 Flange: Oil Drain, 1/2 FOD-GT2535-01
  • Oil Drain Flange: 1/2" NPT-F
  • CNC Machined Billet Aluminium

Flange: Oil Drain. 5/8  FOD-GT2535-05
  • Oil Drain Flange: Suits 5/8" Oil Hose
  • CNC Machined Billet Aluminium - Straight

 Flange: Oil Drain, 5/8 FOD-GT2535-10
  • Oil Drain Flange: Suits 5/8" Oil Hose
  • CNC Machined Billet Aluminium - 5° Tilt

Water In-Out Options
GT Water Banjo Kit FBK-M1405
  • Banjo Fitting Kit: Suits 3/8" Water Hose
  • (1) Banjo Fiting 14mm Hole
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

 M14 Turbo Banjo Kit FBK-M1407
    • M14 Universal Water Kit
    • M14 Banjo x ¼" NPT-F (1)
    • M14 x 1.50 Banjo Bolt (1)
    • M14 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting

Banjo Kit 14mm x 1.5 pitch FBK-M1410
  • Banjo Fitting Kit: Suits -6 AN Fitting
  • (1) Banjo Fiting 14mm Hole, -6 AN Male Flare
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

Wastegates
Tial MV-R 44mm Wastegate T-MV-R
  • Tial 44mm Wastegate Kit:
  • Ultra Compact - 4.17" Tall
  • Water-Cooled Option Included
  • Default Red - .7 Bar (10.15 PSI)
  • Click Here for More Options

Other Options
Polished Compressor Cover Option  PCC-001
  • Polished Compressor Cover

 Applicable Garrett Part Numbers

803712-0001, 803712-1, 700177-0046, 700177-46
