Garrett GT2554R Ball Bearing Turbocharger

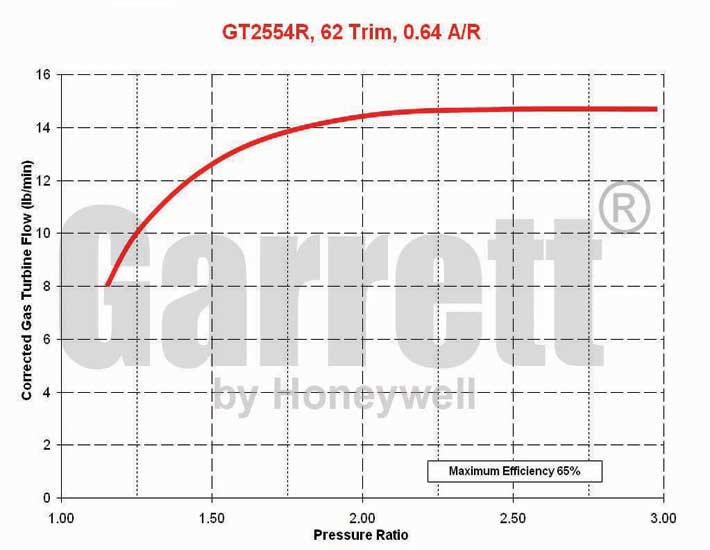

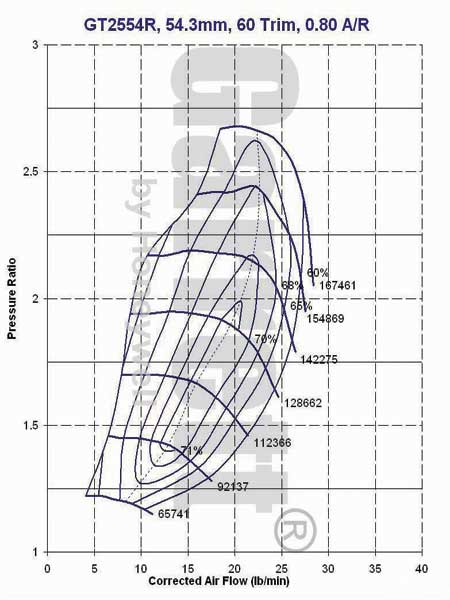

GT25R Ball Bearing TurboClick for Flange DimensionsGT2554R Turbine MapGT2554R Compressor Map
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103
Garrett GT Series, Performance Turbochargers

Garrett GT2554R Ball Bearing Turbocharger

Garrett GT2554R Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 170–270 hp suiting 1.4L–2.2L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No. 471171-0003
Power Up to 270 HP
Engine Size 1.4L - 2.2L
Bearing Dual Ball Bearing
Wastegate Internal Wastegate
Suits
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

Dual Ball Bearing Oil & Water Cooled 2" Compressor Inlet 3 BoltCompressor Outlet Internally Wastegated T25 Turbine Flange 5 Bolt Turbine Outlet Flange

Specifications

Part / model number 471171-0003
Power rating (from) 170 HP
Power rating (up to) 270 HP
Engine size 1.4L - 2.2L
Bearing Dual Ball Bearing
Cooling Oil & Water Cooled
Wastegate Internal Wastegate
Fuel
Suits
Compressor inducer 42.0mm
Compressor exducer 54.3mm
Compressor trim 60
Compressor A/R 0.80
Turbine wheel 53.0mm
Turbine trim 62
Turbine A/R 0.64
Turbine flanges

Product details & options

P/N: GT2554R

Related Parts

Oil Supply

GT Oil Supply Line Kit

H-OSB-314K

  • Low Profile Oil Supply Line Kit – 14″

H-OSB-322K

  • Low Profile Oil Supply Line Kit – 22″

H-OSB-332K

  • Low Profile Oil Supply Line Kit – 32″

H-OSB-348K

  • Low Profile Oil Supply Line Kit – 48″

Oil Drain Options

GT28R Oil Drain Gasket

GOD-GT2535-01

  • Oil Drain Gasket (*Inc. with Turbo)
Flange: Oil Drain, 1/2

FOD-GT2535-01

  • Oil Drain Flange: 1/2″ NPT-F
  • CNC Machined Billet Aluminium
Flange: Oil Drain. 5/8

FOD-GT2535-05

  • Oil Drain Flange: Suits 5/8″ Oil Hose
  • CNC Machined Billet Aluminium – Straight
Flange: Oil Drain, 5/8

FOD-GT2535-10

  • Oil Drain Flange: Suits 5/8″ Oil Hose
  • CNC Machined Billet Aluminium – 5° Tilt

Air Out Option

Flange: Air Outlet - 3 Bolt to 2.00

FAO-3B-200

  • Flange Compressor Outlet
  • 3 Bolt to 2″ Hose
  • CNC Machined Billet Aluminium

Water In-Out Options

GT Water Banjo Kit

FBK-M1405

  • Banjo Fitting Kit: Suits 3/8″ Water Hose
  • (1) Banjo Fiting 14mm Hole
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers
M14 Turbo Banjo Kit

FBK-M1407

  • Suitable for Barb or Flare Nut Fitting
Banjo Kit 14mm x 1.5 pitch

FBK-M1410

  • Banjo Fitting Kit: Suits -6 AN Fitting
  • (1) Banjo Fiting 14mm Hole, -6 AN Male Flare
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

Exhaust In

GT25, GT28 Turbine Base Gasket

GT258U-01

  • GT25, Undivided Base Gasket – Stainless Steel
  • (*Inc. with Turbo)
Flange: Base - T258 Turbine Inlet - Undivided - Mild Steel

FEI-GT258-005

  • GT25 Base Flange
  • Undivided – Mild Steel
  • CNC Machined WITH Tapped Holes
  • 1/2″ (12.7mm) Thick Helps Prevent Warpage
Flange: Base - T258 Turbine Inlet - Undivided - Stainless Steel

FEI-GT258-015

  • As Above – Stainless Steel

Exhaust Out Options

Gasket: Exhaust Out - GT25 to GT30 S/S

GEO-GT2530-5B

  • GT28 “Default” & “Special”
  • Gasket: 5 Bolt Exhaust Out – Stainless Steel
Flange: Exhaust Out - 5 Bolt GT25-GT30

Feo-5b-V2m

  • GT25 5 Bolt Flange Plate
  • CNC Machined Solid Billet Mild Steel
  • Grooved for 3″ Oval Tube
Flange: Exhaust Out - 5 Bolt GT25-GT30

Feo-5b-V2s

  • As Above – Stainless Steel
GT2530 5 Bolt - 3 Dump Pipe Assembly

Feo-5b-V2km

  • GT28 “Default” & “Special”
  • 5 Bolt to 3″ V-Band Adaptor Kit Includes:
  • Flange Plate, 3″ Tube, 3″ V-Band, Tig Welding
  • Mating 3″ V-Band Weld Ring – Mild Steel
  • 3″ V-Band Clamp – Stainless Steel
  • Studs (5) Locking Nuts (5)

Feo-5b-V2ks

  • GT28 “Default” & “Special”
  • As Above with Mating V-Band Ring in Stainless Steel

Actuators

Universal Actuator Bracket

ACT-050U

  • Universal Actuator Bracket
  • CNC Machined 2 Bolt
Universal Actuator 14PSI

ACT-014U

  • Actuator for IWG Turbine Housing
  • Default Spring: 14 PSI
  • Click Here for Other Spring Options

Other Options

Polished Compressor Cover Option

PCC-001

  • Polished Compressor Cover

*Applicable Garrett Part Numbers

471171-5003S, 471171-0003, 471171-3, 471171-5009S, 471171-0009, 471171-9
