Garrett GT2560R Ball Bearing Turbocharger
GT2560R Ball Bearing TurboGT2560R Turbine MapGT2560R Compressor Map
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103
Garrett GT Series, Performance Turbochargers

Garrett GT2560R Ball Bearing Turbocharger

Garrett GT2560R Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 200–330 hp suiting 1.6L–2.5L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No. 466541-0004
Power Up to 330 HP
Engine Size 1.6L - 2.5L
Bearing Dual Ball Bearing
Wastegate Internal Wastegate
Suits
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

Specifications

Part / model number 466541-0004
Power rating (from) 200 HP
Power rating (up to) 330 HP
Engine size 1.6L - 2.5L
Bearing Dual Ball Bearing
Cooling Oil & Water Cooled
Wastegate Internal Wastegate
Fuel
Suits
Compressor inducer 46.5mm
Compressor exducer 60.0mm
Compressor trim 60
Compressor A/R 0.60
Turbine wheel 53.0mm
Turbine trim 62
Turbine A/R 0.64
Turbine flanges

Product details & options

Engine Displacement
1.6L – 2.5L
aka GT28R

Specifications

  • Dual Ball Bearing
  • Oil & Water Cooled
  • 2 Bolt Compressor Inlet
  • 3 Bolt Compressor Outlet
  • Inconel Turbine Wheel*
  • Ni-Resist Turbine Housing*
  • Internally Wastegated
  • T25/T28 Turbine Flange
  • 5 Bolt Turbine Outlet Flange

*For Extreme Applications

Wheel

Inducer Ø: 46.5mm
Exducer Ø: 60.0mm
Trim: 60
A/R: 0.60

Map

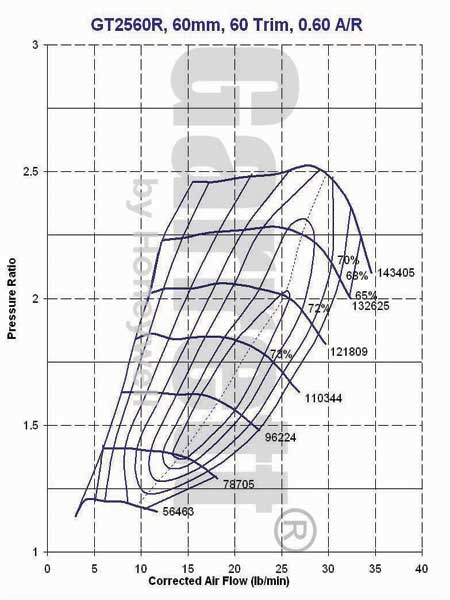

GT2560R Compressor Map

Wheel Ø: 53.0mm
Trim: 62
A/R: 0.64
Wastegated

Map

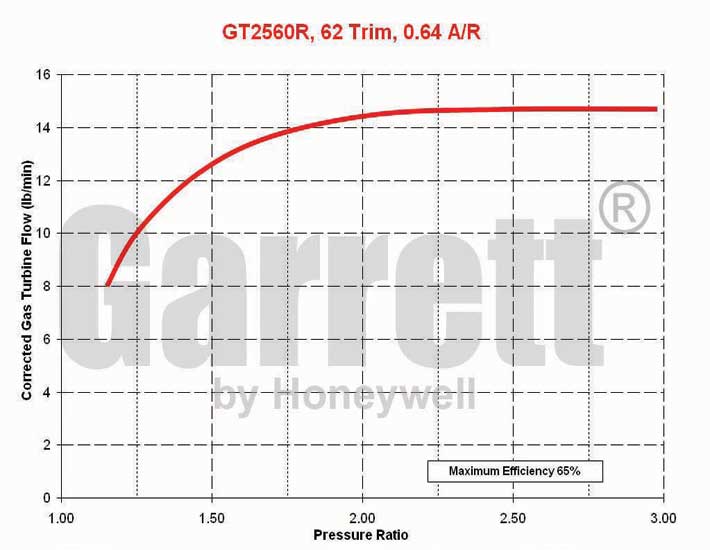

GT2560R Turbine Map
JDM SR20DET
OEM Factory Replacement
GARRETT P/N: 466541-0004
P/N: GT2560R

Related Parts

Oil Supply

GT Oil Supply Line Kit

H-OSB-314K

  • Low Profile Oil Supply Line Kit – 14″

H-OSB-322K

  • Low Profile Oil Supply Line Kit – 22″

H-OSB-332K

  • Low Profile Oil Supply Line Kit – 32″

H-OSB-348K

  • Low Profile Oil Supply Line Kit – 48″

Oil Drain Options

GT28R Oil Drain Gasket

GOD-GT2535-01

  • Oil Drain Gasket (*Inc. with Turbo)
Flange: Oil Drain, 1/2

FOD-GT2535-01

  • Oil Drain Flange: 1/2″ NPT-F
  • CNC Machined Billet Aluminium
Flange: Oil Drain. 5/8

FOD-GT2535-05

  • Oil Drain Flange: Suits 5/8″ Oil Hose
  • CNC Machined Billet Aluminium – Straight
Flange: Oil Drain, 5/8

FOD-GT2535-10

  • Oil Drain Flange: Suits 5/8″ Oil Hose
  • CNC Machined Billet Aluminium – 5° Tilt

Air In-Out Options

Flange: Air Inlet - 2 Bolt to 2.50

FAI-2B-250

  • Flange Compressor Inlet
  • 2 Bolt to 2½” Hose
  • CNC Machined Billet Aluminium
Flange: Air Inlet - 2b to 3.00

FAI-2B-300

  • Flange Compressor Inlet
  • 2 Bolt to 3″ Hose
  • CNC Machined Billet Aluminium
Flange: Air Outlet - 3 Bolt to 2.00

FAO-3B-200

  • Flange Compressor Outlet
  • 3 Bolt to 2″ Hose
  • CNC Machined Billet Aluminium

Water In-Out Options

GT Water Banjo Kit

FBK-M1405

  • Banjo Fitting Kit: Suits 3/8″ Water Hose
  • (1) Banjo Fiting 14mm Hole
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers
M14 Turbo Banjo Kit

FBK-M1407

  • Suitable for Barb or Flare Nut Fitting
Banjo Kit 14mm x 1.5 pitch

FBK-M1410

  • Banjo Fitting Kit: Suits -6 AN Fitting
  • (1) Banjo Fiting 14mm Hole, -6 AN Male Flare
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

Exhaust In

GT25, GT28 Turbine Base Gasket

GT258U-01

  • GT25, GT28 Undivided Base Gasket – Stainless Steel
  • (*Inc. with Turbo)
Flange: Base - T258 Turbine Inlet - Undivided - Mild Steel

FEI-GT258-005

  • GT28 Base Flange
  • Undivided – Mild Steel
  • CNC Machined WITH Tapped Holes
  • 1/2″ (12.7mm) Thick Helps Prevent Warpage
Flange: Base - T258 Turbine Inlet - Undivided - Stainless Steel

FEI-GT258-015

  • As Above – Stainless Steel

Exhaust Out Options

Gasket: Exhaust Out - GT25 to GT30 S/S

GEO-GT2530-5B

  • Gasket: 5 Bolt Exhaust Out – Stainless Steel
Flange: Exhaust Out - 5 Bolt GT25-GT30

Feo-5b-V2m

  • 5 Bolt Flange Plate
  • CNC Machined Solid Billet Mild Steel
  • Grooved for 3″ Oval Tube
Flange: Exhaust Out - 5 Bolt GT25-GT30

Feo-5b-V2s

  • As Above – Stainless Steel
GT2530 5 Bolt - 3 Dump Pipe Assembly

Feo-5b-V2km

  • 5 Bolt to 3″ V-Band Adaptor Kit Includes:
  • Flange Plate, 3″ Tube, 3″ V-Band, Tig Welding
  • Mating 3″ V-Band Weld Ring – Mild Steel
  • 3″ V-Band Clamp – Stainless Steel
  • Studs (5) Locking Nuts (5)

Feo-5b-V2ks

  • As Above with Mating V-Band Ring in Stainless Steel

*Applicable Garrett Part Numbers

466541-5001S, 466541-0001, 466541-1, 466541-5004S, 466541-0004, 466541-4
