Garrett GT3076R Ball Bearing Turbocharger

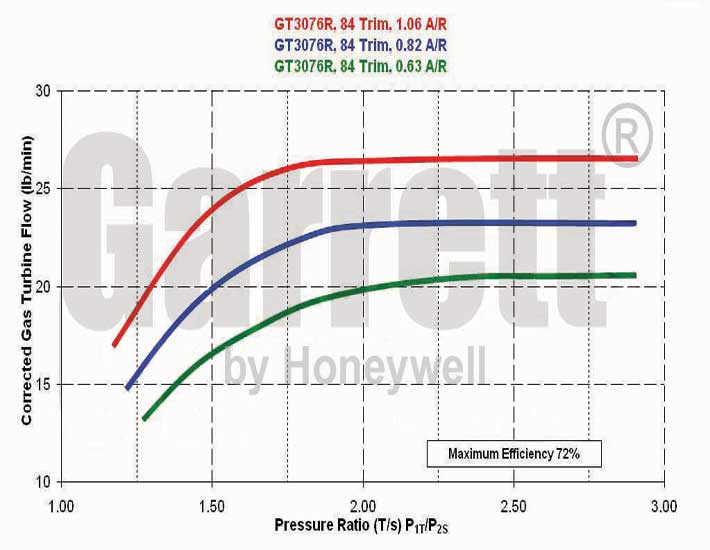

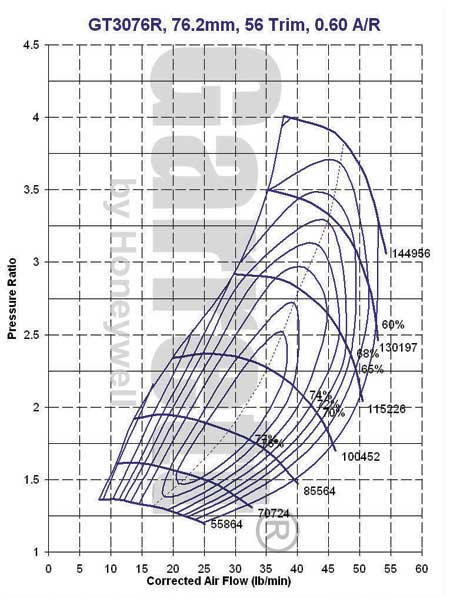

GT3076R Garrett Ball Bearing TurbochargerGT3076R Turbine MapGT3076R Compressore Map
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103
Garrett GT Series, Performance Turbochargers

Garrett GT3076R Ball Bearing Turbocharger

Garrett GT3076R Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 310–525 hp suiting 2.0L–3.0L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No. 700382
Power Up to 525 HP
Engine Size 2.0L - 3.0L
Bearing Dual Ball Bearing
Wastegate
Suits
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

Dual Ball Bearing Oil & Water Cooled 4" Compressor Inlet - Anti-Surge 2.5"" Compressor Outlet .60 A/R Compressor Cover External Wastegate

Specifications

Part / model number 700382
Power rating (from) 310 HP
Power rating (up to) 525 HP
Engine size 2.0L - 3.0L
Bearing Dual Ball Bearing
Cooling Oil & Water Cooled
Wastegate
Fuel
Suits
Compressor inducer 57.0mm / 53.1mm
Compressor exducer 76.2mm / 71.0mm
Compressor trim 56
Compressor A/R 0.60 / .60 / 0.50
Turbine wheel 60.0mm / 56.5mm
Turbine trim 84
Turbine A/R 1.06
Turbine flanges

Product details & options

GT3076R Ball Bearing Turbocharger

Available options

ModelPowerEngine sizePart no.Comp. A/RTurbine A/R
GT3076R-GT28310–525 HP2.0L – 3.0L700382 / GT3076R-GT280.60–
GT3076R-GT3310–525 HP2.0L – 3.0L700382 / GT3076R-GT3.60–
GT3076R-GT4310–525 HP1.8L – 3.0L700382 / GT3076R-GT40.501.06
GT28 Turbine Housing Options
*GT28 Flange BUT Flow the Same Air Ratio (A/R) as a GT3!

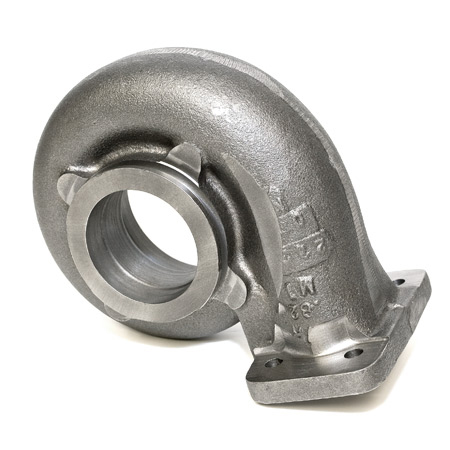

GT28R
  • GT28 Flange “Plus”
  • External Wastegate
  • Available in .63 or .82 A/R
  • T3 Flow Characteristics
  • 2.5″ V-Band Exhaust Outlet

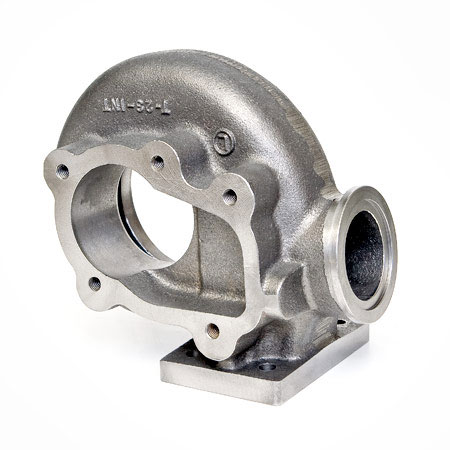

GT28R
  • GT28 Flange “Special”
  • External Wastegate + 44mm Adaptor
  • Available in .72 A/R Only
  • T3 Flow Characteristics
  • 5 Bolt Fits Nissan CA18DET & SR20DET

P/N GT3076R-GT28

Related Parts

Oil Supply

GT Oil Supply Line Kit

H-OSB-314K

  • Low Profile Oil Supply Line Kit – 14″

H-OSB-322K

  • Low Profile Oil Supply Line Kit – 22″

H-OSB-332K

  • Low Profile Oil Supply Line Kit – 32″

H-OSB-348K

  • Low Profile Oil Supply Line Kit – 48″

Oil Drain Options

GT28R Oil Drain Gasket

GOD-GT2535-01

  • Oil Drain Gasket (*Inc. with Turbo)
Flange: Oil Drain, 1/2

FOD-GT2535-01

  • Oil Drain Flange: 1/2″ NPT-F
  • CNC Machined Billet Aluminium
Flange: Oil Drain. 5/8

FOD-GT2535-05

  • Oil Drain Flange: Suits 5/8″ Oil Hose
  • CNC Machined Billet Aluminium – Straight
Flange: Oil Drain, 5/8

FOD-GT2535-10

  • Oil Drain Flange: Suits 5/8″ Oil Hose
  • CNC Machined Billet Aluminium – 5° Tilt

Water In-Out Options

GT Water Banjo Kit

FBK-M1405

  • Banjo Fitting Kit: Suits 3/8″ Water Hose
  • (1) Banjo Fiting 14mm Hole
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers
M14 Turbo Banjo Kit

FBK-M1407

  • Suitable for Barb or Flare Nut Fitting
Banjo Kit 14mm x 1.5 pitch

FBK-M1410

  • Banjo Fitting Kit: Suits -6 AN Fitting
  • (1) Banjo Fiting 14mm Hole, -6 AN Male Flare
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

Exhaust In

GT25, GT28 Turbine Base Gasket

GT258U-01

  • GT25, GT28 Undivided Base Gasket – Stainless Steel
  • (*Inc. with Turbo)
Flange: Base - T258 Turbine Inlet - Undivided - Mild Steel

FEI-GT258-005

  • GT28 Base Flange
  • Undivided – Mild Steel
  • CNC Machined WITH Tapped Holes
  • 1/2″ (12.7mm) Thick Helps Prevent Warpage

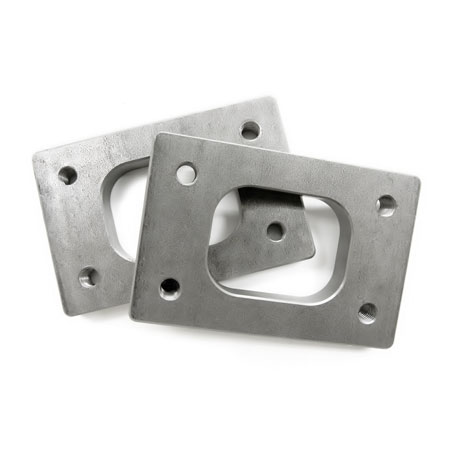

Flange: Base - T258 Turbine Inlet - Undivided - Stainless Steel

FEI-GT258-015

  • As Above – Stainless Steel

Exhaust Out Options

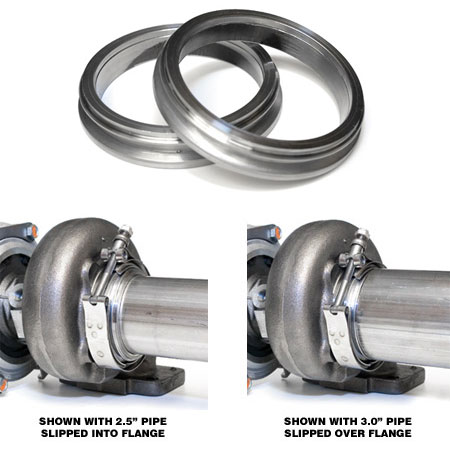

V-Band Flange 2.5

FVB-0253M

  • GT28 “Plus”
  • 2½ or 3″ V-Band Weld Flange Mild Steel
  • Use 2 to adapt 2½” to 3″ Exhaust Tube
  • Also fits GT28R “Plus” Turbine Housing
  • CNC Machined From Solid Billet Stock

FVB-0253S

  • GT28 “Plus”
  • As Above – Stainless Steel
Clamp - V-Band 5

CVB-0025

  • GT28 “Plus”
  • 2.5″ Heavy Duty Stainless Steel

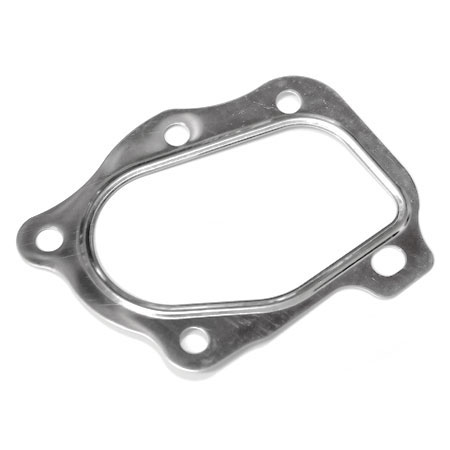

Gasket: Exhaust Out - GT25 to GT30 S/S

GEO-GT2530-5B

  • GT28 “Special”
  • Gasket: 5 Bolt Exhaust Out – Stainless Steel

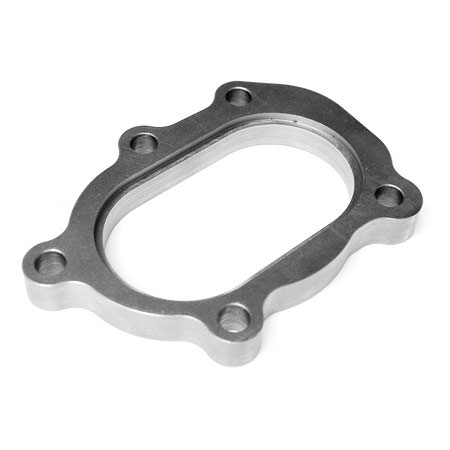

Flange: Exhaust Out - 5 Bolt GT25-GT30

Feo-5b-V2m

  • GT28 “Special”
  • 5 Bolt Flange Plate
  • CNC Machined Solid Billet Mild Steel
  • Grooved for 3″ Oval Tube
Flange: Exhaust Out - 5 Bolt GT25-GT30

Feo-5b-V2s

  • GT28 “Special”
  • As Above – Stainless Steel

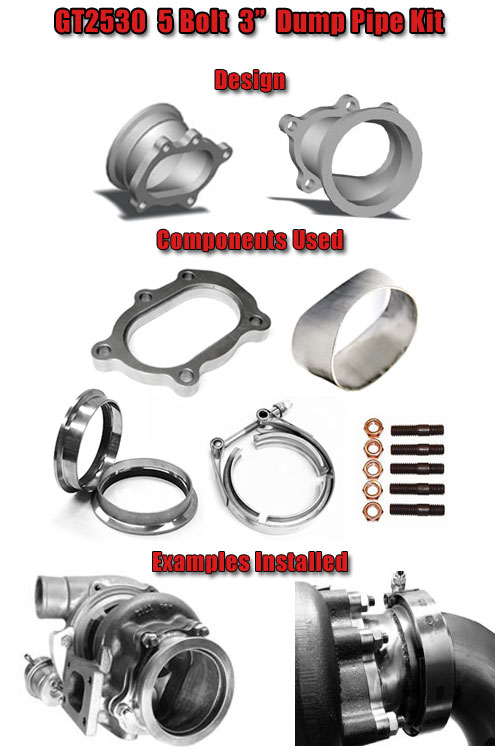

GT2530 5 Bolt - 3 Dump Pipe Assembly

Feo-5b-V2km

  • GT28 “Special”
  • 5 Bolt to 3″ V-Band Adaptor Kit Includes:
  • Flange Plate, 3″ Tube, 3″ V-Band, Tig Welding
  • Mating 3″ V-Band Weld Ring – Mild Steel
  • 3″ V-Band Clamp – Stainless Steel
  • Studs (5) Locking Nuts (5)

Feo-5b-V2ks

  • GT28 “Special”
  • As Above with Mating V-Band Ring in Stainless Steel

Wastegates

Tial MV-R 44mm Wastegate

T-MV-R

  • Tial 44mm Wastegate Kit:
  • Ultra Compact – 4.17″ Tall
  • Water-Cooled Option Included
  • Default Red – .7 Bar (10.15 PSI)
  • Click Here for More Options

Other Options

Polished Compressor Cover

PCC-001

  • Polished Compressor Cover

Applicable Garrett Part Numbers

700382-5012S, 700382-5012, 700382-0012, 700382-12, 700177-5007, 700177-0007, 700177-7
