Garrett GT3582R Ball Bearing Turbocharger

GT3582R Garrett Ball Bearing Turbocharger

Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Garrett GT Series, Performance Turbochargers

Garrett GT3582R Ball Bearing Turbocharger

Garrett GT3582R Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 400–600 hp suiting 2.0L–4.5L engines. Enquire with Procharge for sizing advice, pricing and availability.

Part No. 714568

Power Up to 600 HP

Engine Size 2.0L - 4.5L

Bearing Dual Ball Bearing

Wastegate

Suits

Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

Dual Ball Bearing Oil & Water Cooled 4" Compressor Inlet (Optional Anti-Surge) 2.5"" Compressor Outlet External Wastegate

Specifications

Part / model number	714568
Power rating (from)	400 HP
Power rating (up to)	600 HP
Engine size	2.0L - 4.5L
Bearing	Dual Ball Bearing
Cooling	Oil & Water Cooled
Wastegate
Fuel
Suits

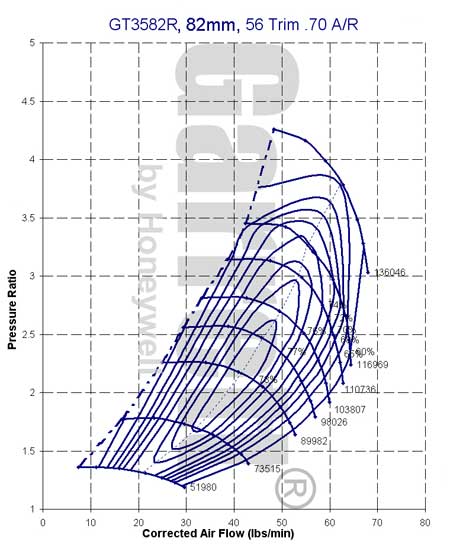

Compressor inducer	61.4mm
Compressor exducer	82.0mm
Compressor trim	56
Compressor A/R	0.70

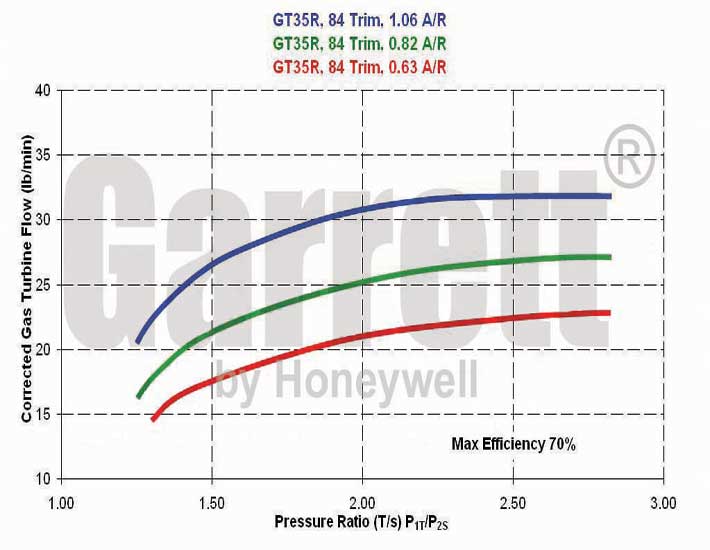

Turbine wheel	68.0mm
Turbine trim	84
Turbine A/R	.63
Turbine flanges

Product details & options

GT3582R Ball Bearing Turbocharger

Available options

Model	Power	Engine size	Part no.	Comp. A/R	Turbine A/R
GT3582R-GT28	400–600 HP	2.0L – 4.5L	714568 / GT3582R-GT28	0.70	.63
GT3582R-GT3	400–600 HP	2.0L – 4.5L	714568 / GT3582R-GT3	0.70	–
GT3582R-GT4	400–600 HP	2.0L – 4.5L	714568 / GT3582R-GT4	0.70	–

GT28 “Plus” Turbine Housing

GT28 Base BUT Flows the same as a GT3!

Related Parts

Oil Supply

H-OSB-314K

Low Profile Oil Supply Line Kit – 14″

H-OSB-322K

Low Profile Oil Supply Line Kit – 22″

H-OSB-332K

Low Profile Oil Supply Line Kit – 32″

H-OSB-348K

Low Profile Oil Supply Line Kit – 48″

Oil Drain Options

GOD-GT2535-01

Oil Drain Gasket (*Inc. with Turbo)

FOD-GT2535-01

Oil Drain Flange: 1/2″ NPT-F
CNC Machined Billet Aluminium

FOD-GT2535-05

Oil Drain Flange: Suits 5/8″ Oil Hose
CNC Machined Billet Aluminium – Straight

FOD-GT2535-10

Oil Drain Flange: Suits 5/8″ Oil Hose
CNC Machined Billet Aluminium – 5° Tilt

Water In-Out Options

FBK-M1405

Banjo Fitting Kit: Suits 3/8″ Water Hose
(1) Banjo Fiting 14mm Hole
(1) Banjo Bolt, 14mm x 1.5 pitch
(2) Crush Washers

FBK-M1407

Suitable for Barb or Flare Nut Fitting

FBK-M1410

Banjo Fitting Kit: Suits -6 AN Fitting
(1) Banjo Fiting 14mm Hole, -6 AN Male Flare
(1) Banjo Bolt, 14mm x 1.5 pitch
(2) Crush Washers

Exhaust In

GT258U-01

GT25, GT28 Undivided Base Gasket – Stainless Steel

Exhaust Out

FVB-0253M

2½ or 3″ V-Band Weld Flange Mild Steel
Use 2 to adapt 2½” to 3″ Exhaust Tube
Also fits GT28R “Plus” Turbine Housing
CNC Machined From Solid Billet Stock

FVB-0253S

2½ or 3″ V-Band Weld Flange Stainless Steel
Use 2 to adapt 2½” to 3″ Exhaust Tube
Also fits GT28R “Plus” Turbine Housing
CNC Machined From Solid Billet Stock

CVB-0025

2.5″ Heavy Duty Stainless Steel

Wastegates

T-MV-R

Tial 44mm Wastegate Kit:
Ultra Compact – 4.17″ Tall
Water-Cooled Option Included
Default Red – .7 Bar (10.15 PSI)
Click Here for More Options

Other Options

PCC-001

Polished Compressor Cover

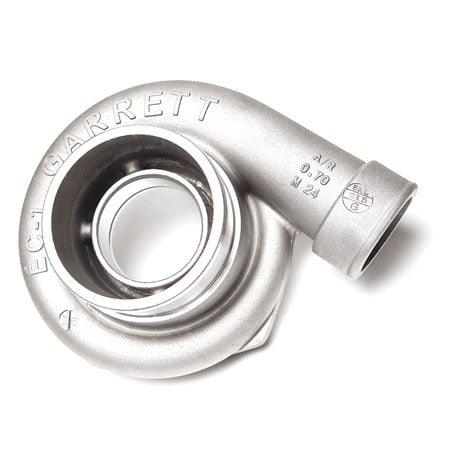

Garrett Ported Shroud Compressor Cover .70 A/R

GPS-001

Anti-Surge Compressor Cover – Garrett Style

ASCC-001

Anti-Surge Compressor Cover – Bullet Style
Available Only on 4″ Inlet Housing*

Applicable GARRETT Part Numbers

714568-5001S, 714568-5002S, ,714568-5003S, 714568-5007S, 714568-5008S, 714568-5009S, 714568-5010S, 714568-0001, 714568-0002,
714568-0003, 714568-1, 714568-2, 714568-3, 706451-5005S, 706451-5005, 706451-5
