Garrett GT Series, Performance Turbochargers
Garrett GT3788R Ball Bearing Turbocharger
Garrett GT3788R Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 440–675 hp suiting 2.0L–5.0L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No.
772719
Power
Up to
675
HP
Engine Size
2.0L - 5.0L
Bearing
Dual Ball Bearing
Wastegate
Suits
Pricing & availability on request
Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.
Key features
Dual Ball Bearing
Oil & Water Cooled
.72 A/R Compressor Cover
Ported Anti-Surge Inlet Shroud
4" Compressor Inlet
2.5" Compressor Outlet
GT3 Undivided Turbine Inlet
3" V-Band Turbine Outlet
External Wastegate
Specifications
| Part / model number | 772719 |
|---|---|
| Power rating (from) | 440 HP |
| Power rating (up to) | 675 HP |
| Engine size | 2.0L - 5.0L |
| Bearing | Dual Ball Bearing |
| Cooling | Oil & Water Cooled |
| Wastegate | |
| Fuel | |
| Suits | |
| Compressor inducer | 63.5mm |
| Compressor exducer | 88.0mm |
| Compressor trim | 52 |
| Compressor A/R | 0.72 |
| Turbine wheel | |
| Turbine trim | |
| Turbine A/R | |
| Turbine flanges |
Product details & options
GT3788R Ball Bearing Turbocharger
Available options
| Model | Power | Engine size | Part no. | Comp. A/R |
|---|---|---|---|---|
| GT3788R-GT3 | 440–675 HP | 2.0L – 5.0L | 772719 / GT3788R-GT3 | 0.72 |
| GT3788R-GT4 | 440–675 HP | 2.0L – 5.0L | 772719 / GT3788R-GT4 | 0.72 |
GT3 Turbine Housing
- GT3 Undivided Inlet
- .63 / .82 / 1.06 A/R
- 3″ V-Band Outlet
Turbo P/N: GT3788R-GT3
Related Parts
Oil Supply
Gos-T34-01
- Gasket Oil Supply (*Inc. with Turbo)
casino site s4gambling.com which lets you test run the games before playing for real money to be sure you have got the hang of the site and any variations. />
Fos-T34-01
- CNC Billet Aluminium Oil Feed Flange
Oil Drain
God-T34-01
- Gasket Oil Drain
- *Inc. with Turbo
Fod-T34-01
- CNC Billet Aluminium Oil Drain Flange
- 1/2″ NPT Female Thresd
Water In-Out

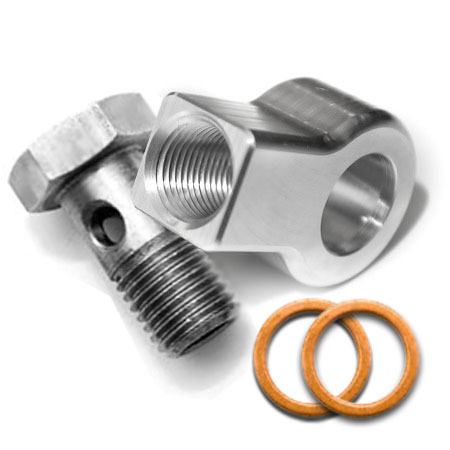

FBK-M1805
- M18 Universal Water Kit
- M18 Banjo x 3/8 NPT-F (1)
- M18 x 1.50 Banjo Bolt (1)
- M18 Copper Washers (2)
- Suitable for Barb or Flare Nut Fitting
Exhaust – In
GT3U-01
- Stainless Steel Base Gasket
- *Inc. with Turbo
Exhaust – Out
FVB-003M
- 3″ V-Band Weld Flange
- Mild Steel
FVB-003
- 3″ V-Band Weld Flange
- Stainless Steel
CVB-003
- 3″ V-Band Clamp
- Heavy Duty
- Stainless Steel
Wastegates
T-MV-R
- Tial 44mm Wastegate Kit:
- Ultra Compact – 4.17″ Tall
- Water-Cooled Option Included
- Default Red – .7 Bar (10.15 PSI)
- Click Here for More Options
T-V60
- Tial V60 60mm Wastegate Kit
- High Horsepower Applicationa
- Flows 330 CFM @ 1psi Differential Pressure
- Default Silver – .673 Bar (9.77 PSI)
- Click Here for More Options
Other Options
PCC-005
- Polished Compressor Cover
Applicable Garrett Part Numbers
772719-5001S, 772719-0001, 772719-1, 772719-5002S, 772719-5003S, 772719-0003, 772719-3, 751451-5012S, 751451-0012, 751451-12
