Garrett GT Series, Performance Turbochargers
Garrett GT40 Series Ball Bearing Turbochargers (GT4088R / GT4094R)
Garrett GT40 Series Ball Bearing Turbochargers (GT4088R / GT4094R) – dual ball bearing turbocharger supporting 400–800 hp suiting 2.0L–6.0L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No.
751470
Power
Up to
800
HP
Engine Size
2.0L - 6.0L
Bearing
Dual Ball Bearing
Wastegate
Suits
Pricing & availability on request
Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.
Key features
Dual Ball Bearing
Oil & Water Cooled
.72 A/R Compressor Cover
Anti-Surge Ported Shroud Inlet
4" Compressor Inlet
2.5" Compressor Outlet
External Wastegate
3" V-Band Turbine Outlet
Specifications
| Part / model number | 751470 |
|---|---|
| Power rating (from) | 400 HP |
| Power rating (up to) | 800 HP |
| Engine size | 2.0L - 6.0L |
| Bearing | Dual Ball Bearing |
| Cooling | Oil & Water Cooled |
| Wastegate | |
| Fuel | |
| Suits | |

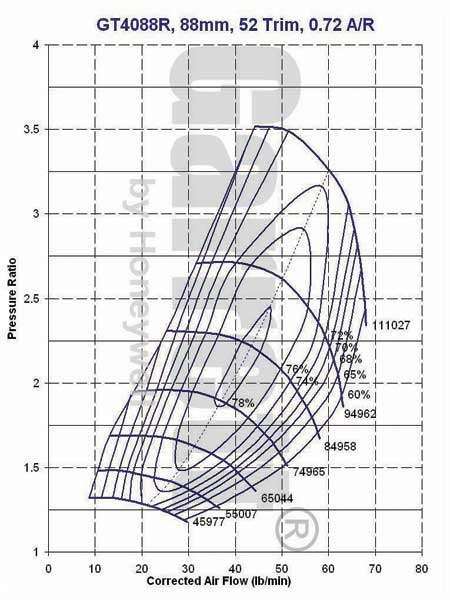

| Compressor inducer | 63.5mm / 67.8mm |
| Compressor exducer | 88.0mm / 94.0mm |
| Compressor trim | 52 |
| Compressor A/R | 0.72 |
| Turbine wheel | |
| Turbine trim | |
| Turbine A/R | |
| Turbine flanges |
Product details & options
GT4088R Ball Bearing Turbocharger
Available options
| Model | Power | Engine size | Part no. | Comp. A/R |
|---|---|---|---|---|
| GT4088R-GT4 | 400–700 HP | 2.0L – 6.0L | 751470 / GT4088R-GT4 | 0.72 |
| GT4094R-GT4 | 450–800 HP | 2.0L – 5.7L | 751470 / GT4094R-GT4 | 0.72 |

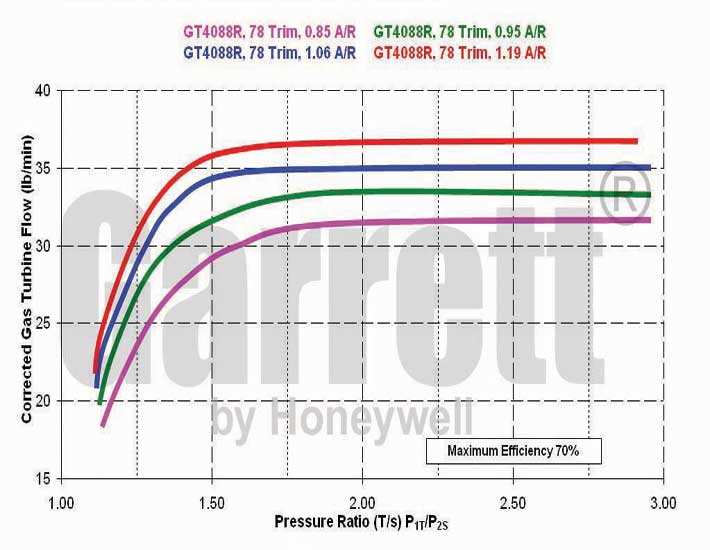

GT4 Turbine Housing
- GT4 Divided Inlet
- .85 / .95 / 1.06 / 11.9 A/R
- 3″ V-Band Outlet
Turbo P/N: GT4088R-GT4
Related Parts
Oil Supply
Gos-T34-01
- Gasket Oil Supply (*Inc. with Turbo)
Fos-T34-01
- CNC Billet Aluminium Oil Feed Flange
Oil Drain
God-T34-01
- Gasket Oil Drain (*Inc. with Turbo)
Fod-T34-01
- CNC Billet Aluminium Oil Drain Flange
- 1/2″ NPT Female Thresd
Water In-Out
FBK-M1805
- M18 Universal Water Kit
- M18 Banjo x 3/8 NPT-F (1)
- M18 x 1.50 Banjo Bolt (1)
- M18 Copper Washers (2)
- Suitable for Barb or Flare Nut Fitting
Exhaust-In
GT4D-01
- Stainless Steel Base Gasket (*Inc. with Turbo)
Exhaust-Out
FVB-003M
- 3″ V-Band Weld Flange
- Stainless Steel
FVB-003M
- 3″ V-Band Weld Flange
- Stainless Steel
CVB-003
- 3″ V-Band Clamp
- Heavy Duty
- Stainless Steel
Wastegates
T-MV-R
- Tial 44mm Wastegate Kit:
- Ultra Compact – 4.17″ Tall
- Water-Cooled Option Included
- Default Red – .7 Bar (10.15 PSI)
- Click Here for More Options
T-V60
- Tial V60 60mm Wastegate Kit
- High Horsepower Applicationa
- Flows 330 CFM @ 1psi Differential Pressure
- Default Silver – .673 Bar (9.77 PSI)
- Click Here for More Options
Other Options
Pc-Pcc
- Polished Compressor Cover
Applicable GARRETT Part Numbers
751470-5001S, 751470-5002S, 751470-5003S, 751470-5004S, 751450-5009S, 751470-0001, 751470-0002, 751470-0003, 751470-0004,
751450-5009, 751470-1, 751470-2, 751470-3, 751470-4
