Garrett GT42 Series Ball Bearing Turbochargers (GT4202R / GT4294R)

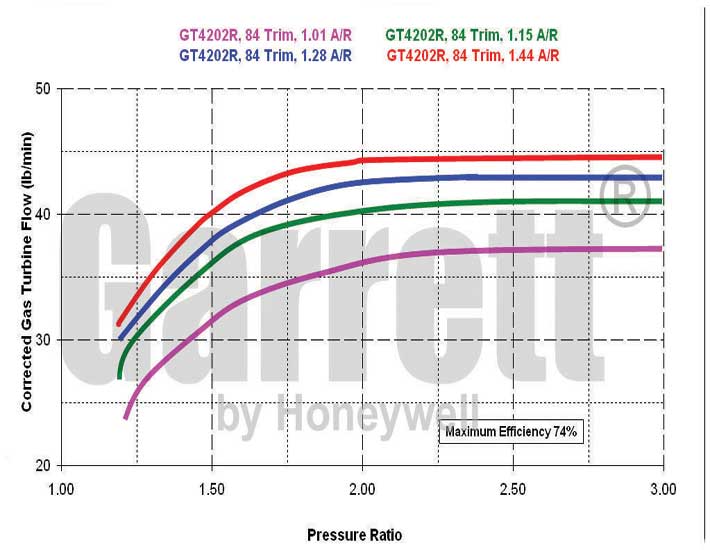

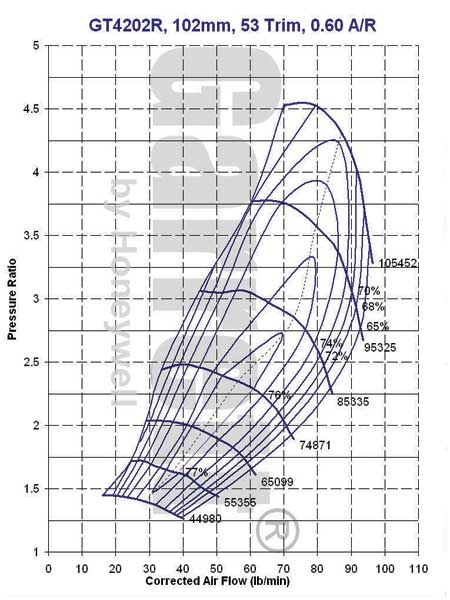

GT4202R Ball Bearing TurbochargerClick for Flange DimensionsGT4202R Turbine MapsGT4294R Garrett Ball Bearing TurbochargerGT4294R Turbine MapsGT4202R Compressor Map
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103
Garrett GT Series, Performance Turbochargers

Garrett GT42 Series Ball Bearing Turbochargers (GT4202R / GT4294R)

Garrett GT42 Series Ball Bearing Turbochargers (GT4202R / GT4294R) – dual ball bearing turbocharger supporting 500–1000 hp suiting 2.0L–8.0L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No. 774595
Power Up to 1000 HP
Engine Size 2.0L - 8.0L
Bearing Dual Ball Bearing
Wastegate
Suits
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

Dual Ball Bearing Oil & Water Cooled .60 A/R Compressor Cover Ported Shroud Compressor Inlet 5" Compressor Inlet V-Band Compressor Outlet External Wastegate 4" V-Band Turbine Outlet

Specifications

Part / model number 774595
Power rating (from) 500 HP
Power rating (up to) 1000 HP
Engine size 2.0L - 8.0L
Bearing Dual Ball Bearing
Cooling Oil & Water Cooled
Wastegate
Fuel
Suits
Compressor inducer 74.7mm / 70.3mm
Compressor exducer 102.3mm / 94.0mm
Compressor trim 53 / 56
Compressor A/R 0.60
Turbine wheel
Turbine trim
Turbine A/R
Turbine flanges

Product details & options

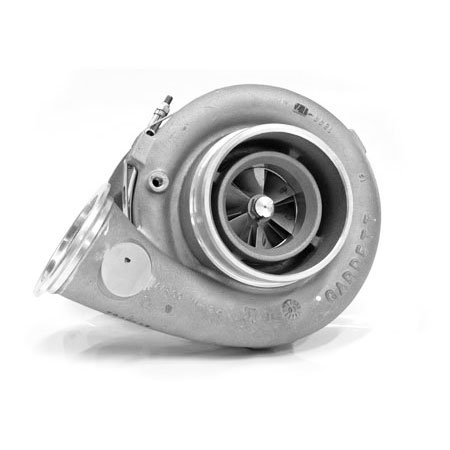

GT4202R Ball Bearing Turbocharger

Available options

ModelPowerEngine sizePart no.Comp. A/R
GT4202R-GT4700–1000 HP2.0L – 8.0L774595 / GT4202R-GT40.60
GT4294R-GT4500–850 HP2.0L – 8.0L774595 / GT4294R-GT40.60

GT4 Turbine Housing

GT4 Turbine Housing 3
  • GT4 Divided Inlet
  • 1.01 / 1.15 / 1.28 / 1.44 A/R
  • 4″ V-Band Outlet

Turbo P/N: GT4202R-GT4

Related Parts

Oil Supply

Oil Supply Gasket

Gos-T34-01

  • Gasket Oil Supply (*Inc. with Turbo)
Oil Supply Flange

Fos-T34-01

  • CNC Billet Aluminium Oil Feed Flange

Oil Drain

Oil Drain Gasket

God-T34-01

  • Gasket Oil Drain (*Inc. with Turbo)
Oil Drain Flange

Fod-T34-01

  • CNC Billet Aluminium Oil Drain Flange
  • 1/2″ NPT Female Thresd

Air

Flange: GT42 Compressor Outlet Adaptor Kit

FCO-005K

  • 3.5″ Compressor Outlet Flange Kit
  • Slip on 3.5″ Hose or Weld to Outlet Pipe
  • Machined to Support an O-Ring
  • Adaptor, O-Ring & V-Band Clamp Included in Kit
  • Typically for GT42, GT42R, GT42RS Turbos

Water In-Out

Fitting Kit: Water - M18 x 1.50

FBK-M1805

  • M18 Universal Water Kit
  • M18 Banjo x 3/8 NPT-F (1)
  • M18 x 1.50 Banjo Bolt (1)
  • M18 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting

Exhaust In

Gasket: Base T4 Divided S/S

GT4D-01

  • Stainless Steel Base Gasket (*Inc. with Turbo)

Exhaust Out

5 V-Band Weld Flange

FVB-004

  • 4″ V-Band Weld Flange – Mild Steel
5 V-Band Clamp

CVB-004

  • 4″ V-Band Clamp
  • Heavy Duty
  • Stainless Steel

Wastegates

Tial V60 Wastegate Kit

T-V60

  • Tial V60 60mm Wastegate Kit
  • High Horsepower Applicationa
  • Flows 330 CFM @ 1psi Differential Pressure
  • Default Silver – .673 Bar (9.77 PSI)
  • Click Here for More Options

Applicable GARRETT Part Numbers

451888-5011S, 451888-0011, 451888-11
