Garrett GT Series, Performance Turbochargers

Garrett GT4508R-GT4 Ball Bearing Turbocharger

Garrett GT4508R-GT4 Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 700–1100 hp suiting 2.0L–8.0L engines. Enquire with Procharge for sizing advice, pricing and availability.

Part No. 742581

Power Up to 1100 HP

Engine Size 2.0L - 8.0L

Bearing Dual Ball Bearing

Wastegate

Suits

Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

Dual Ball Bearing Oil & Water Cooled .69 A/R Compressor Cover Ported Anti-Surge Shroud 6" Compressor Inlet 3.5" Compressor Outlet External Wastegate 4" V-Band Turbine Outlet

Specifications

Part / model number	742581
Power rating (from)	700 HP
Power rating (up to)	1100 HP
Engine size	2.0L - 8.0L
Bearing	Dual Ball Bearing
Cooling	Oil & Water Cooled
Wastegate
Fuel
Suits
Compressor inducer	80.8mm
Compressor exducer	108.0mm
Compressor trim	56
Compressor A/R	0.69
Turbine wheel
Turbine trim
Turbine A/R
Turbine flanges

Product details & options

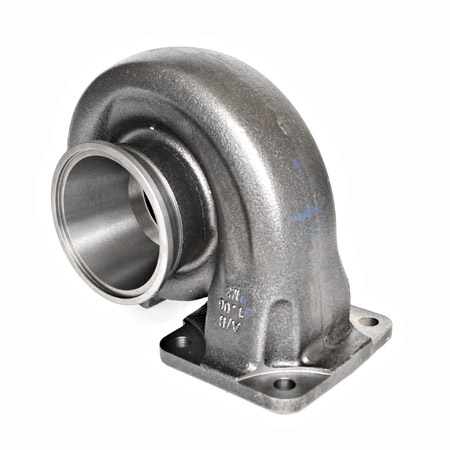

GT4 Turbine Housing

GT4 Divided Inlet
1.01 / 1.15 / 1.28 / 1.44 A/R
4″ V-Band Outlet

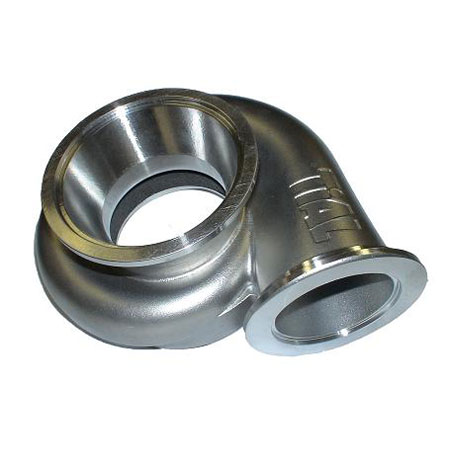

Tial Turbine Housing

Dual V-Band
Cast Stainless Steel
More Compact / Lighter
1.00 A/R Only
$200.00

TURBO P/N: GT4508R-GT4

RELATED PARTS

Oil Supply

Gos-T34-01

Gasket Oil Supply (*Inc. with Turbo)

Fos-T34-01

CNC Billet Aluminium Oil Feed Flange

Oil Drain

God-T34-01
