Garrett GT Series, Performance Turbochargers

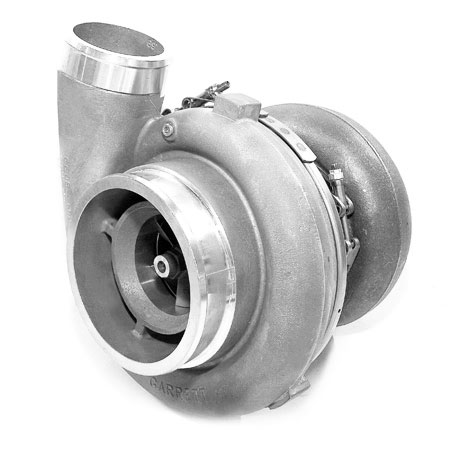

Garrett GT47 Series Ball Bearing Turbochargers (GT4708R / GT4718R)
Garrett GT47 Series Ball Bearing Turbochargers (GT4708R / GT4718R) – dual ball bearing turbocharger supporting 700–1400 hp suiting 2.5L–10.0L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No.
769112
Power
Up to
1400
HP
Engine Size
2.5L - 10.0L
Bearing
Dual Ball Bearing
Wastegate
Suits
Pricing & availability on request
Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.
Key features
Dual Ball Bearing
Oil Cooled
.72 A/R Compressor Cover
Ported Anti-Surge Shroud
6" Compressor Inlet
3.5" Compressor Outlet
External Wastegate
GT6 Undivided Turbine Housing
5" V-Band Turbine Outlet
Specifications
| Part / model number | 769112 |
|---|---|
| Power rating (from) | 700 HP |
| Power rating (up to) | 1400 HP |
| Engine size | 2.5L - 10.0L |
| Bearing | Dual Ball Bearing |
| Cooling | |
| Wastegate | |
| Fuel | |
| Suits | |
| Compressor inducer | 80.7mm / 88.0mm |
| Compressor exducer | 108.0mm / 117.6mm |
| Compressor trim | 56 |
| Compressor A/R | 0.69 |
| Turbine wheel | |
| Turbine trim | |
| Turbine A/R | |
| Turbine flanges |
Product details & options

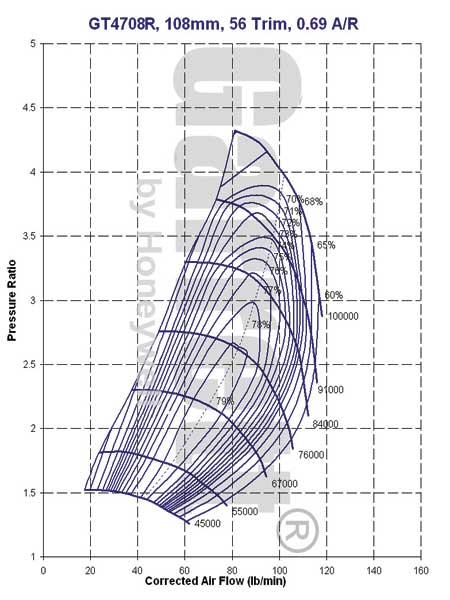

GT4708R Ball Bearing Turbocharger
Available options
| Model | Power | Engine size | Part no. | Comp. A/R |
|---|---|---|---|---|
| GT4708R-GT6 | 700–1200 HP | 2.5L – 10.0L | 769112 / GT4708R-GT6 | 0.69 |
| GT4718R-GT6 | 850–1400 HP | 2.5L – 10.0L | 769112 / GT4718-GT6 | 0.69 |
Turbo P/N: GT4708R-GT6
Related Parts
Oil Supply
Gos-T34-01
- Gasket Oil Supply (*Inc. with Turbo)
Fos-T34-01
- CNC Billet Aluminium Oil Feed Flange
Oil Drain
God-T34-01
- Gasket Oil Drain (*Inc. with Turbo)
Fod-T34-01
- CNC Billet Aluminium Oil Drain Flange
Exhaust In
GT6U-01
- Stainless Steel Base Gasket (*Inc. with Turbo)
Exhaust Out
FVB-005
- 5″ V-Band Weld Flange – Mild Steel
CVB-005
- 5″ V-Band Clamp
- Heavy Duty
- Stainless Steel
Wastegates
T-V60
- Tial V60 60mm Wastegate Kit
- High Horsepower Applicationa
- Flows 330 CFM @ 1psi Differential Pressure
- Default Silver – .673 Bar (9.77 PSI)
- Click Here for More Options
Applicable GARRETT Part Numbers
769112-0001, 769112-1
