Garrett GTX4294R Ball Bearing Turbocharger

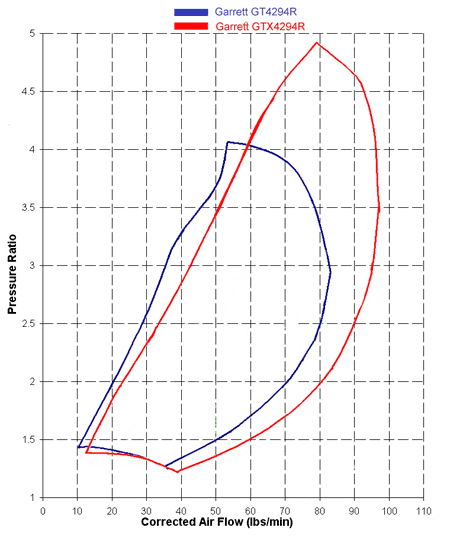

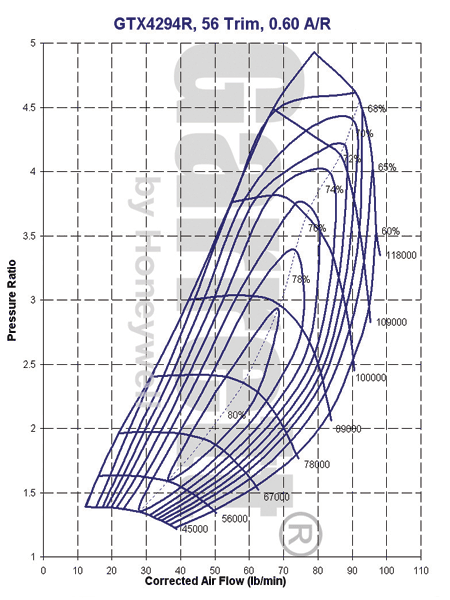

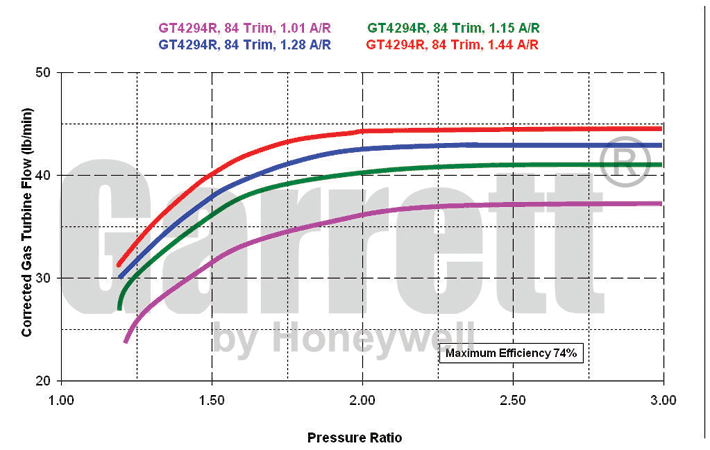

GTX4202R Ball Bearing TurbochargerClick for Flange DimensionsGTX4204R Turbine MapsGT4294R vs GTX4294R Compressor MapsGTX4294R Compressor Map
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103
Garrett GTX Series, Performance Turbochargers

Garrett GTX4294R Ball Bearing Turbocharger

Garrett GTX4294R Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 550–950 hp suiting 2.0L–8.0L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No. 800269
Power Up to 950 HP
Engine Size 2.0L - 8.0L
Bearing Dual Ball Bearing
Wastegate
Suits
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

10%+ Overall Gain Over GT Series Dual Ball Bearing Oil & Water Cooled 5" Compressor Inlet V-Band Compressor Outlet 11 Full-Blade Forged & Machined Billet C-Wheel Optional Turbine Housings Available External Wastegate

Specifications

Part / model number 800269
Power rating (from) 550 HP
Power rating (up to) 950 HP
Engine size 2.0L - 8.0L
Bearing Dual Ball Bearing
Cooling Oil & Water Cooled
Wastegate
Fuel
Suits
Compressor inducer 70.3mm
Compressor exducer 94.0mm
Compressor trim 56
Compressor A/R 0.60
Turbine wheel 82.mm
Turbine trim 84.00
Turbine A/R
Turbine flanges

Product details & options

Garrett’s New Ultra Hi-Flow GTX Compressor Wheel
11 Full-Blade Forged & Machined Billet
Click Image for a Closer View ->

GTX Compressor Wheel

Optional Tial Turbine Housing

Tial V-Band Turbine Housing

Tial Dual V-Band Housing
External Wastegate (EWG)
Available in 1.01 A/R
Stainless Steel – Lightweight

RELATED ITEMS

Oil Inlet

Oil Supply Gasket

Gos-T34-01

  • Gasket Oil Supply
  • *Inc. with Turbo
Oil Supply Flange

Fos-T34-01

  • CNC Billet Aluminium Oil Feed Flange

Oil Drain

Oil Drain Gasket

God-T34-01

  • Gasket Oil Drain
  • *Inc. with Turbo
Oil Drain Flange

Fod-T34-01

  • CNC Billet Aluminium Oil Drain Flange
  • 1/2″ NPT Female Thresd

Air Oulet

Flange: GT42 Compressor Outlet Adaptor Kit

FCO-005K

  • 3.5″ Compressor Outlet Flange Kit
  • Slip on 3.5″ Hose or Weld to Outlet Pipe
  • Machined to Support an O-Ring
  • Adaptor, O-Ring & V-Band Clamp Included in Kit
  • Typically for GT42, GT42R, GT42RS Turbos

Water In-Out

Fitting Kit: Water - M18 x 1.50

FBK-M1805

  • M18 Universal Water Kit
  • M18 Banjo x 3/8 NPT-F (1)
  • M18 x 1.50 Banjo Bolt (1)
  • M18 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting

Exhaust Inlet

Gasket: Base T4 Divided S/S

GT4D-01

  • GT4 Stainless Steel Base Gasket
  • *Inc. with Turbo
Gasket: Base T4 Divided S/S

GT6D-01

  • GT6 Stainless Steel Base Gasket
  • *Inc. with Turbo

Exhaust Outlet

5 V-Band Weld Flange

FVB-004M

  • 4″ V-Band Weld Flange – Mild Steel
  • CNC Machined From Solid Billet Stock
5 V-Band Weld Flange

FVB-004S

  • As Above – Stainless Steel
5 V-Band Clamp

CVB-004

  • 4″ V-Band Clamp
  • Heavy Duty
  • Stainless Steel
5 V-Band Weld Flange

FVB-005M

  • 5″ V-Band Weld Flange – Mild Steel
  • CNC Machined From Solid Billet Stock
5 V-Band Weld Flange

FVB-005S

  • As Above – Stainless Steel

Awaiting Stock

5 V-Band Clamp

CVB-005

  • 5″ Heavy Duty Stainless Steel

Wastegates

Tial V60 Wastegate Kit

T-V60-D

  • Tial V60 60mm Wastegate Kit
  • Default Colour – Silver
  • Default Spring – .673 Bar – 9.77 PSI
  • Click Here for More Options!

Applicable Garrett Part Numbers

800269-0001, 800269-1, 451888-0043, 451888-43
