Home / Garrett / Garrett GTX4508R Ball Bearing Turbocharger
Garrett GTX4508R Ball Bearing Turbocharger

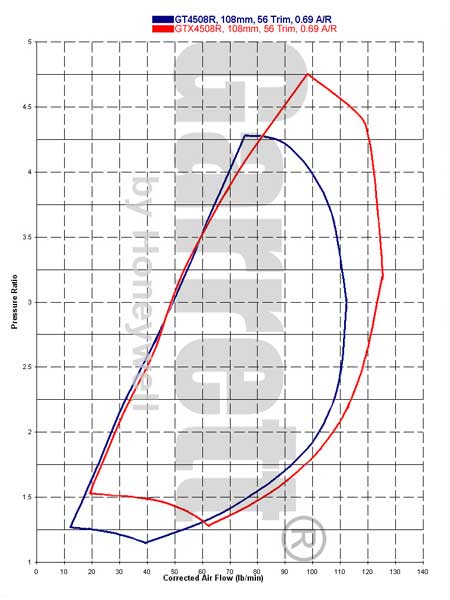

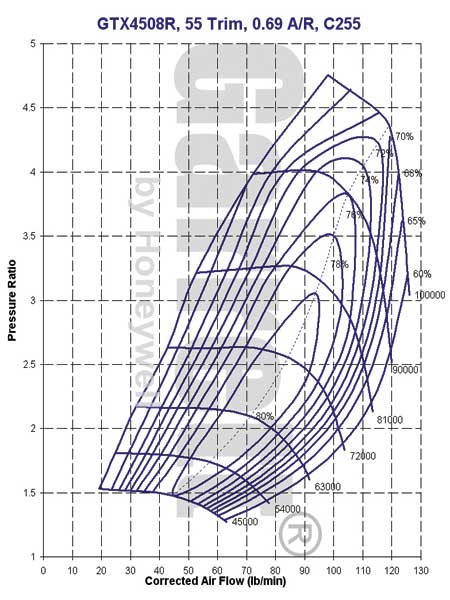

GTX4508R Ball Bearing TurbochargerClick for Flange DimensionsGTX4508R Turbine MapsGT4508R vs GTX4508R Compressor MapGTX4508R Compressor Map
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103
Garrett GTX Series, Performance Turbochargers

Garrett GTX4508R Ball Bearing Turbocharger

Garrett GTX4508R Ball Bearing Turbocharger – dual ball bearing turbocharger supporting 750–1250 hp suiting 2.0L–8.0L engines. Enquire with Procharge for sizing advice, pricing and availability.
Part No. 800270
Power Up to 1250 HP
Engine Size 2.0L - 8.0L
Bearing Dual Ball Bearing
Wastegate
Suits
Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

10%+ Overall Gain Over GT Series Dual Ball Bearing Oil & Water Cooled 5" Compressor Inlet 11 Full-Blade Forged & Machined Billet C-Wheel Optional Turbine Housings Available External Wastegate

Specifications

Part / model number 800270
Power rating (from) 750 HP
Power rating (up to) 1250 HP
Engine size 2.0L - 8.0L
Bearing Dual Ball Bearing
Cooling Oil & Water Cooled
Wastegate
Fuel
Suits
Compressor inducer 79.8mm
Compressor exducer 108.00mm
Compressor trim 55
Compressor A/R 0.60
Turbine wheel 87.0.mm
Turbine trim 85
Turbine A/R
Turbine flanges

Product details & options

Garrett’s New Ultra Hi-Flow GTX Compressor Wheel
11 Full-Blade Forged & Machined Billet
Click Image for a Closer View ->

GTX Compressor Wheel

Optional Tial Turbine Housing

Tial V-Band Turbine Housing
  • Tial Dual V-Band Housing
  • External Wastegate (EWG)
  • Available in 1.01 A/R Only
  • Cast Stainless Steel
  • More Compact & Lightweight

RELATED ITEMS

Oil Inlet

Oil Supply Gasket

Gos-T34-01

  • Gasket Oil Supply
  • *Inc. with Turbo
Oil Supply Flange

Fos-T34-01

  • CNC Billet Aluminium Oil Feed Flange

Oil Drain

Oil Drain Gasket

God-T34-01

  • Gasket Oil Drain
  • *Inc. with Turbo
Oil Drain Flange

Fod-T34-01

  • CNC Billet Aluminium Oil Drain Flange
  • 1/2″ NPT Female Thresd

Water In-Out

Fitting Kit: Water - M18 x 1.50

FBK-M1805

  • M18 Universal Water Kit
  • M18 Banjo x 3/8 NPT-F (1)
  • M18 x 1.50 Banjo Bolt (1)
  • M18 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting

Exhaust Inlet

Gasket: Base T4 Divided S/S

GT4D-01

  • GT4 Stainless Steel Base Gasket
  • *Inc. with Turbo

Exhaust Outlet

5 V-Band Weld Flange

FVB-004M

  • 4″ V-Band Weld Flange – Mild Steel
  • CNC Machined From Solid Billet Stock
5 V-Band Weld Flange

FVB-004S

  • As Above – Stainless Steel
5 V-Band Clamp

CVB-004

  • 4″ V-Band Clamp
  • Heavy Duty
  • Stainless Steel

Wastegates

Tial V60 Wastegate Kit

T-V60-D

  • Tial V60 60mm Wastegate Kit
  • Default Colour – Silver
  • Default Spring – .673 Bar – 9.77 PSI
  • Click Here for More Options!

Applicable Garrett Part Numbers

800270-0001, 800270-1, 451888-0045, 451888-45
