Installation Parts
Turbo Flanges
Turbo Flanges for turbocharger installations and upgrades. Enquire with Procharge for sizes, pricing and availability.
Part No.
Power
Up to
HP
Engine Size
Bearing
Wastegate
Internal Wastegate
Suits
Pricing & availability on request
Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.
Key features
Specifications
| Part / model number | |
|---|---|
| Power rating (from) | HP |
| Power rating (up to) | HP |
| Engine size | |
| Bearing | |
| Cooling | |
| Wastegate | Internal Wastegate |
| Fuel | |
| Suits | |
| Compressor inducer | |
| Compressor exducer | |
| Compressor trim | |
| Compressor A/R | |
| Turbine wheel | |
| Turbine trim | |
| Turbine A/R | |
| Turbine flanges |
Product details & options
Flanges
Air Inlet
GT28
FAI-2B-250
- Flange Compressor Inlet
- 2 Bolt to 2½” Hose
- CNC Machined Billet Aluminium
FAI-2B-300
- Flange Compressor Inlet
- 2 Bolt to 3″ Hose
- CNC Machined Billet Aluminium
Air Outlet
GT28
FAO-3B-200
- Flange Compressor Outlet
- 3 Bolt to 2″ Hose
- CNC Machined Billet Aluminium
GT42, GT42R, GT42RS

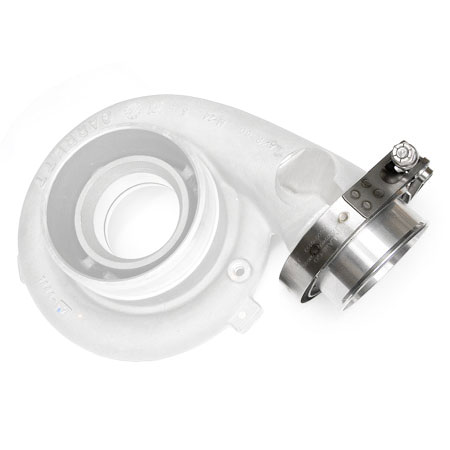

FCO-005K
- 3.5″ Compressor Outlet Flange Kit
- Slip on 3.5″ Hose or Weld to Outlet Pipe
- Machined to Support an O-Ring
- Adaptor, O-Ring & V-Band Clamp Included in Kit
Exhaust Inlet
GT25, GT28
FEI-GT258-005
- Mild Steel Undivided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern:
FEI-GT258-015
- 304 Stainless Steel Undivided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern:
GT3, GT4 Some
FEI-GT3-005
- Mild Steel Undivided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 3.375″ x 1.75″
No Image
FEI-GT3-010
- Mild Steel Divided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 3.375″ x 1.75″
Awaiting Stock

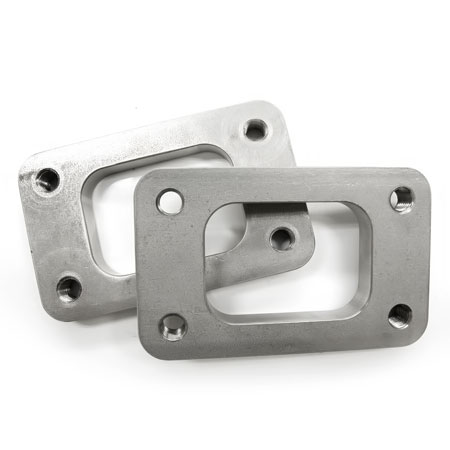

FEI-GT3-015
- 304 Stainless Steel Undivided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 3.375″ x 1.75″

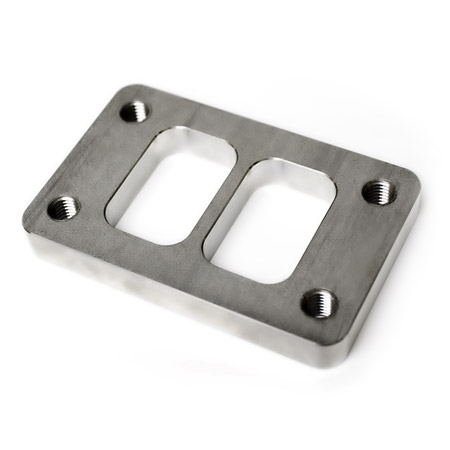

FEI-GT3-020
- 304 Stainless Steel Divided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 3.375″ x 1.75″
GT4

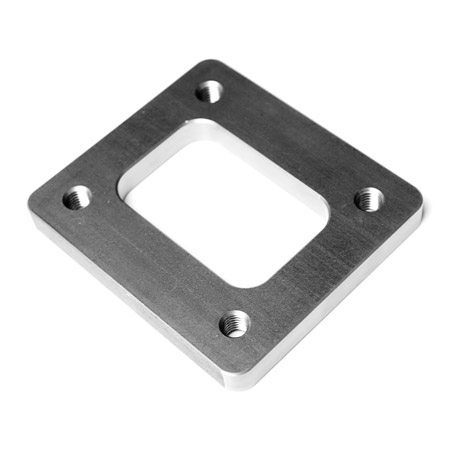

FEI-GT4-005
- Mild Steel Undivided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 3.250″ x 2.750

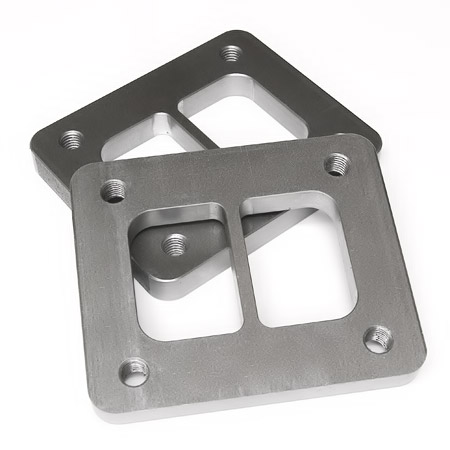

FEI-GT4-010
- Mild Steel Divided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 3.250″ x 2.750
No Image
FEI-GT4-015
- Stainless Steel Undivided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 3.250″ x 2.750
Awaiting Stock

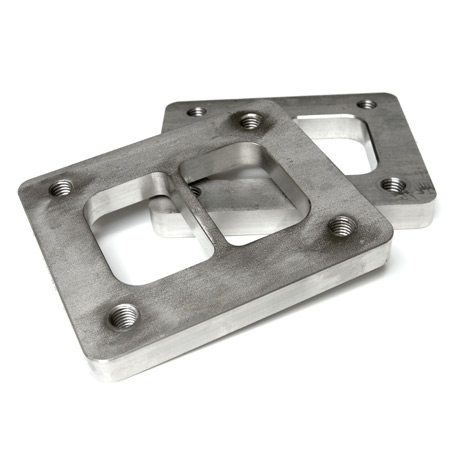

FEI-GT4-020
- Stainless Steel Divided
- CNC Machined WITH Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 3.250″ x 2.750
GT6
No Image
FEI-GT6-005
- Mild Steel Undivided
- CNC Machined WITH M10 Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 4.5″ and 2.75″ Centre to Centre

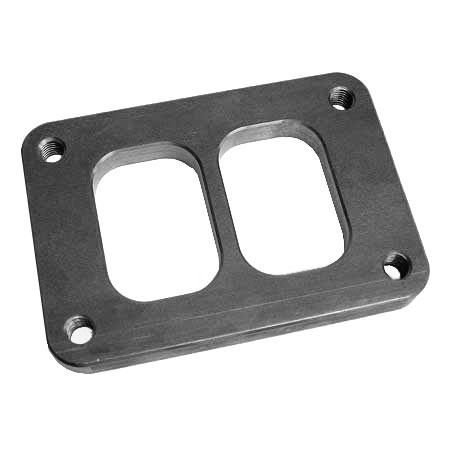

FEI-GT6-010
- Mild Steel Divided
- CNC Machined WITH M10 Tapped Holes
- 1/2″ (12.7mm) Thick Helps Prevent Warpage
- Bolt Pattern: 4.5″ and 2.75″ Centre to Centre
TIAL

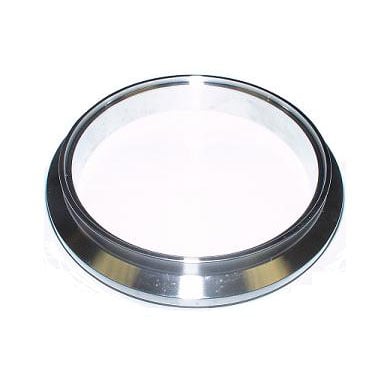

FEI-T2530R
- Tial Stainless V-Band Flange
- Suits Tial Stainless Turbine Housing
- Suits GT28R / GT30R / GT35R
FEI-T4042R
- Tial Stainless V-Band Flange
- Suits Tial Stainless Turbine Housing
- Suits GT40R / GT42R
Exhaust Outlet: Flange Plates
GT25, GT28
FEO-5B -GT2530TP
- 5 Bolt Flange Plate
- CNC Machined Solid Billet Stainless Steel ½” Thick
- Twin Exit Ports: 2¼” & 1½”
Feo-5b-V2m
- 5 Bolt Flange Plate
- CNC Machined Solid Billet Mild Steel
- Grooved for 3″ Oval Tube
- Groove Assists for Neater Welding
Feo-5b-V2s
- As Above
- CNC Machined from Solid Billet “Stainless Steel”
Feo-5b-V2km
- 5 Bolt to 3″ V-Band Adaptor Kit Includes:
- Flange Plate, 3″ Tube, 3″ V-Band, Tig Welding
- Mating 3″ V-Band Weld Ring – Mild Steel
- 3″ V-Band Clamp – Stainless Steel
- Studs (5) Locking Nuts (5)
Feo-5b-V2ks
- As Above with Mating V-Band Ring in Stainless Steel
GT3
Feo-Gt3-Iwg-05
- GT3 5 Bolt Internal Wastegate Flange Plate
- Dual Outlets – 3″ & 2″ or 4″ Oval Single Outlet
- CNC Machined from Solid Billet Mild Steel
MITSUBISHI

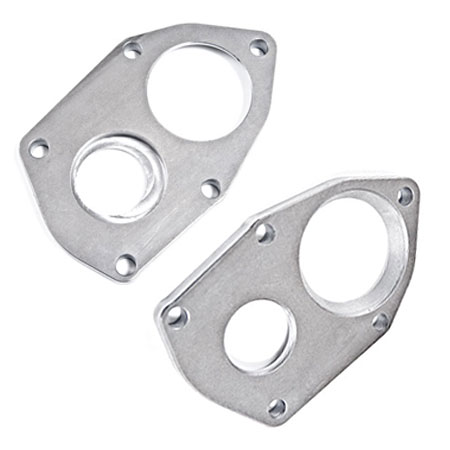

FEO-EVO-789
- Mitsubishi Evolution 7, 8 & 9 Flange Plate
- CNC Machined from Solid Billet Mild Steel
- 3″ Primary Outlet, 1¾” Wastegate Outlet
- Optional: Use 4″ Oval Tube
Exhaust Outlet: V-Band
FVB-0253M
- 2½ or 3″ V-Band Weld Flange Mild Steel
- Use 2 to adapt 2½” to 3″ Exhaust Tube
- Also fits GT28R “Plus” Turbine Housing
- CNC Machined From Solid Billet Stock
FVB-0253S
- As Above – Stainless Steel
FVB-003M
- 3″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
FVB-003S
- 3″ V-Band Weld Flange – Stainless Steel
- CNC Machined From Solid Billet Stock

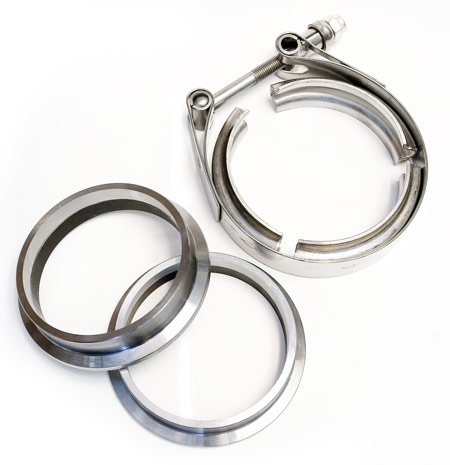

FVB-003MK
- 3″ V-Band Kit
- 3″ Weld Flange – Mild Steel (2)
- CNC Machined From Solid Billet Stock
- 3″ V-Band Clamp – Stainless Steel (1)
FVB-004M
- 4″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
FVB-004S
- 4″ V-Band Weld Flange – Stainless Steel
- CNC Machined From Solid Billet Stock
FVB-005M
- 5″ V-Band Weld Flange – Mild Steel
- CNC Machined From Solid Billet Stock
FVB-005S
- 5″ V-Band Weld Flange – Stainless Steel
- CNC Machined From Solid Billet Stock
Awaiting Stock
TIAL
FEO-T2530R
- Tial Stainless V-Band Flange
- Suits Tial Stainless Turbine Housing
- Suits GT28R / GT30R / GT35R

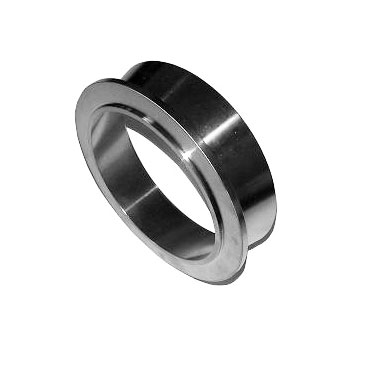

FEO-T4042R
- Tial Stainless V-Band Flange
- Suits Tial Stainless Turbine Housing
- Suits GT40R / GT42R
Oil Supply
GT3, GT4
Fos-Gt34-01
- CNC Machined Billet Aluminium
- Centre to Centre 38.10 mm
Oil Drain Options
GT25, GT28, GT3, GT4
FOD-GT2535-01
- Oil Drain Flange: 1/2″ NPT-F
- CNC Machined Billet Aluminium
FOD-GT2535-05
- Oil Drain Flange: Suits 5/8″ Oil Hose
- CNC Machined Billet Aluminium – Straight
FOD-GT2535-10
- Oil Drain Flange: Suits 5/8″ Oil Hose
- CNC Machined Billet Aluminium – 5° Tilt
Fod-Gt34-01
- CNC Machined Billet Aluminium
- 1/2″ NPT Female Thread
- Centre to Centre 50.80mm
