Garrett Ball Bearing Turbochargers
GT2554R
Ball Bearing Turbocharger

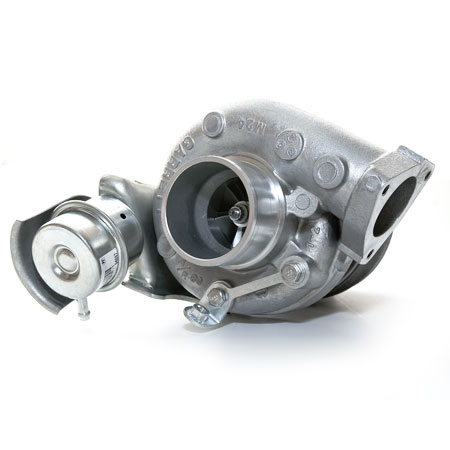

GT25R Ball Bearing Turbo


Horsepower Rated 170-270

Engine Displacement
1.4L - 2.2L

aka GT25R


Features
  • Dual Ball Bearing
  • Oil & Water Cooled
  • 2" Compressor Inlet
  • 3 BoltCompressor Outlet
  • Internally Wastegated
  • T25 Turbine Flange
  • 5 Bolt Turbine Outlet Flange

Compressor Turbine

Inducer Ø: 42.0mm
Exducer Ø: 54.3mm
Trim: 60
A/R: 0.80

Wheel Ø: 53.0mm
Trim: 62
A/R: 0.64
Wastegated

Map
GT2554R Compressor Map

Map

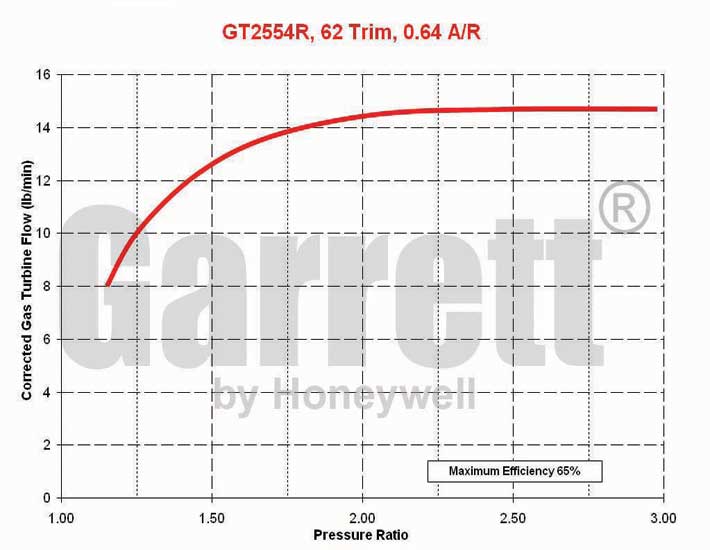

GT2554R Turbine Map
Click for Flange Dimensions
GARRETT P/N: 471171-0003

P/N: GT2554R






RELATED PARTS

Oil Supply
GT Oil Supply Line Kit H-OSB-314K
  • Low Profile Oil Supply Line Kit - 14"

H-OSB-322K
  • Low Profile Oil Supply Line Kit - 22"

H-OSB-332K
  • Low Profile Oil Supply Line Kit - 32"

H-OSB-348K
  • Low Profile Oil Supply Line Kit - 48"

Oil Drain Options
 GT28R Oil Drain Gasket GOD-GT2535-01
  • Oil Drain Gasket (*Inc. with Turbo)

 Flange: Oil Drain, 1/2 FOD-GT2535-01
  • Oil Drain Flange: 1/2" NPT-F
  • CNC Machined Billet Aluminium

Flange: Oil Drain. 5/8  FOD-GT2535-05
  • Oil Drain Flange: Suits 5/8" Oil Hose
  • CNC Machined Billet Aluminium - Straight

 Flange: Oil Drain, 5/8 FOD-GT2535-10
  • Oil Drain Flange: Suits 5/8" Oil Hose
  • CNC Machined Billet Aluminium - 5° Tilt

Air Out Option

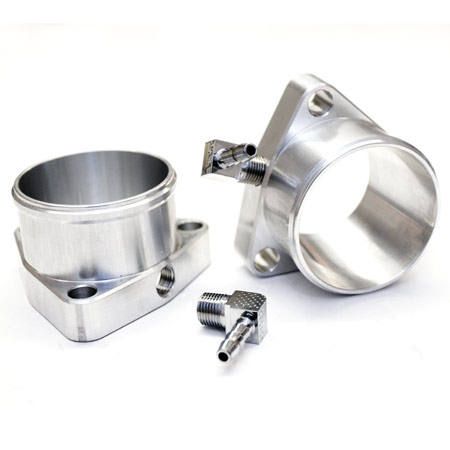

Flange: Air Outlet - 3 Bolt to 2.00  FAO-3B-200
  • Flange Compressor Outlet
  • 3 Bolt to 2" Hose
  • CNC Machined Billet Aluminium


Water In-Out Options
GT Water Banjo Kit FBK-M1405
  • Banjo Fitting Kit: Suits 3/8" Water Hose
  • (1) Banjo Fiting 14mm Hole
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

M14 Turbo Banjo Kit  FBK-M1407
    • M14 Universal Water Kit
    • M14 Banjo x ¼" NPT-F (1)
    • M14 x 1.50 Banjo Bolt (1)
    • M14 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting


Banjo Kit 14mm x 1.5 pitch FBK-M1410
  • Banjo Fitting Kit: Suits -6 AN Fitting
  • (1) Banjo Fiting 14mm Hole, -6 AN Male Flare
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers


Exhaust In

GT25, GT28 Turbine Base Gasket GT258U-01
  • GT25, Undivided Base Gasket - Stainless Steel
  • (*Inc. with Turbo)

 Flange: Base - T258 Turbine Inlet - Undivided - Mild Steel FEI-GT258-005
  • GT25 Base Flange
  • Undivided - Mild Steel
  • CNC Machined WITH Tapped Holes
  • 1/2" (12.7mm) Thick Helps Prevent Warpage

 Flange: Base - T258 Turbine Inlet - Undivided - Stainless Steel FEI-GT258-015
  • As Above - Stainless Steel

Exhaust Out Options
Gasket: Exhaust Out - GT25 to GT30 S/S GEO-GT2530-5B
  • GT28 "Default" & "Special"
  • Gasket: 5 Bolt Exhaust Out - Stainless Steel

 Flange: Exhaust Out - 5 Bolt GT25-GT30 FEO-5B-V2M
  • GT25 5 Bolt Flange Plate
  • CNC Machined Solid Billet Mild Steel
  • Grooved for 3" Oval Tube

 Flange: Exhaust Out - 5 Bolt GT25-GT30 FEO-5B-V2S
  • As Above - Stainless Steel

GT2530 5 Bolt - 3" Dump Pipe Assembly  FEO-5B-V2KM
  • GT28 "Default" & "Special"
  • 5 Bolt to 3" V-Band Adaptor Kit Includes:
  • Flange Plate, 3" Tube, 3" V-Band, Tig Welding
  • Mating 3" V-Band Weld Ring - Mild Steel
  • 3" V-Band Clamp - Stainless Steel
  • Studs (5) Locking Nuts (5)

FEO-5B-V2KS
  • GT28 "Default" & "Special"
  • As Above with Mating V-Band Ring in Stainless Steel

Actuators
Universal Actuator Bracket ACT-050U
  • Universal Actuator Bracket
  • CNC Machined 2 Bolt

Universal Actuator 14PSI ACT-014U
  • Actuator for IWG Turbine Housing
  • Default Spring: 14 PSI
  • Click Here for Other Spring Options

Other Options
 Polished Compressor Cover Option PCC-001
  • Polished Compressor Cover


*Applicable Garrett Part Numbers
471171-5003S, 471171-0003, 471171-3, 471171-5009S, 471171-0009, 471171-9
