Garrett Ball Bearing Turbochargers
GT3076R
Ball Bearing Turbocharger

GT3076R Garrett Ball Bearing Turbocharger

Horsepower Rated 310 - 525

Engine Displacement
2.0L - 3.0L

aka GT30R

Features
  • Dual Ball Bearing
  • Oil & Water Cooled
  • 4" Compressor Inlet with Ported Shroud
  • 2" Compressor Outlet
  • Internal or External Wastegate
  • Optional Turbine Housings

Compressor Turbine

Inducer Ø: 57.0mm
Exducer Ø: 76.2mm
Trim: 56
A/R: .60
Wheel Ø: 60.0mm
Trim: 84
A/R: Various
IWG or EWG


Map
GT3076R Compressore Map


Maps
GT3076R Turbine Map

HKS GT2871R HKS GT3037 56 Trim Equivalent

GARRETT P/N: 700382

GT3 Turbine Housing Options


Option 1

Garrett T3 Undivided V-Band Turbine Housing EWG

  • GT3 Flange
  • External Wastegate
  • .63 A/R - .82 A/R - 1.06 A/R
  • V-Band 3" Out


Option 2

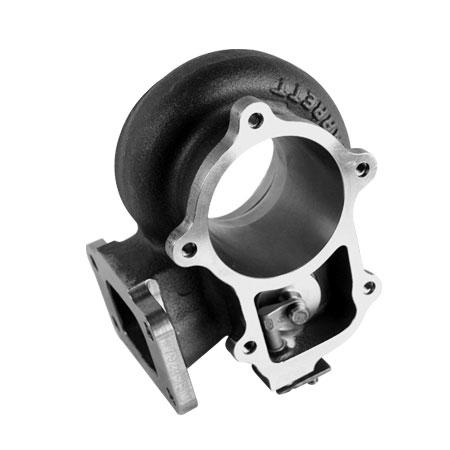

GT3 Internal Wastegate

  • GT3 Flange
  • Internal Wastegate
  • .63 A/R - .82 A/R - 1.06 A/R
  • Actuator & Bracket Not Included


Option 3

Tial V-Band Turbine Housing

  • Tial Dual V-Band
  • External Wastegate
  • .63 A/R - .82 A/R - 1.06 A/R
  • Stainless Steel - Lightweight


P/N: GT3076R-GT3

Specify Turbine Housing & A/R



RELATED PARTS

Oil Supply
GT Oil Supply Line Kit H-OSB-314K
  • Low Profile Oil Supply Line Kit - 14"

H-OSB-322K
  • Low Profile Oil Supply Line Kit - 22"

H-OSB-332K
  • Low Profile Oil Supply Line Kit - 32"

H-OSB-348K
  • Low Profile Oil Supply Line Kit - 48"

Oil Drain Options
 GT28R Oil Drain Gasket GOD-GT2535-01
  • Oil Drain Gasket
  • *Inc. with Turbo

 Flange: Oil Drain, 1/2 FOD-GT2535-01
  • Oil Drain Flange: 1/2" NPT-F
  • CNC Machined Billet Aluminium

Flange: Oil Drain. 5/8  FOD-GT2535-05
  • Oil Drain Flange: Suits 5/8" Oil Hose
  • CNC Machined Billet Aluminium - Straight

 Flange: Oil Drain, 5/8 FOD-GT2535-10
  • Oil Drain Flange: Suits 5/8" Oil Hose
  • CNC Machined Billet Aluminium - 5° Tilt

Water In-Out Options
GT Water Banjo Kit FBK-M1405
  • Banjo Fitting Kit: Suits 3/8" Water Hose
  • (1) Banjo Fiting 14mm Hole
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

M14 Turbo Banjo Kit  FBK-M1407
    • M14 Universal Water Kit
    • M14 Banjo x ¼" NPT-F (1)
    • M14 x 1.50 Banjo Bolt (1)
    • M14 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting

Banjo Kit 14mm x 1.5 pitch FBK-M1410
  • Banjo Fitting Kit: Suits -6 AN Fitting
  • (1) Banjo Fiting 14mm Hole, -6 AN Male Flare
  • (1) Banjo Bolt, 14mm x 1.5 pitch
  • (2) Crush Washers

Actuators & Wastegates
Universal Actuator Bracket ACT-050U
  • Universal Actuator Bracket
  • CNC Machined 2 Bolt

Universal Actuator 14PSI ACT-014U
  • Actuator for IWG Turbine Housing
  • Default Spring: 14 PSI
  • Click Here for Other Spring Options

Tial MV-R 44mm Wastegate T-MV-R
  • Tial 44mm Wastegate Kit:
  • Ultra Compact - 4.17" Tall
  • Water-Cooled Option Included
  • Default Red - .7 Bar (10.15 PSI)
  • Click Here for More Options


Exhaust In
GT28 Base Gasket GT3U-01
  • Stainless Steel Turbine Base Gasket
  • *Inc. with Turbo

Exhaust Out
 Flange: 5" V-Band Mild Steel FVB-003M
  • 3" V-Band Weld Flange - Mild Steel

Flange: 5" V-Band Mild Steel  FVB-003S
  • 3" V-Band Weld Flange - Stainless Steel

 Clamp - V-Band 5 CVB-003
  • 3" Heavy Duty Stainless Steel

 GT3 Internal Wastegate Flange Plate FEO-GT3-IWG-05
  • GT3 5 Bolt Internal Wastegate Flange Plate
  • Dual Outlets - 3" & 2" or 4" Oval Single Outlet
  • CNC Machined from Solid Billet Mild Steel

Other Options
Polished Compressor Cover PCC-001
  • Polished Compressor Cover

Applicable GARRETT Part Numbers

700382-5012S, 700382-5012, 700382-0012, 700382-12, 700177-5007, 700177-0007, 700177-7
