Garrett Ball Bearing Turbochargers
GT4094R
Ball Bearing Turbocharger

 Garrett GT3788R Ball Bearing Turbocharger


Horsepower Rated 450 to 800

Engine Displacement
2.0L - 5.7L

aka GT4042R Hybrid


Features:
  • Dual Ball Bearing
  • Oil & Water Cooled
  • .72 A/R Compressor Cover
  • Anti-Sure Ported Shroud
  • 4" Compressor Inlet
  • 2.5" Compressor Outlet
  • External Wastegate
  • 3" V-Band Turbine Outlet

Compressor Turbine

Inducer Ø: 67.8mm
Exducer Ø: 94.0mm
Trim: 52
A/R: 0.72

Wheel: 77.0mm
Trim: 78
GT4 Divided Inlet
A/R: Optional


Map
GT4094R Compressor Map


Maps

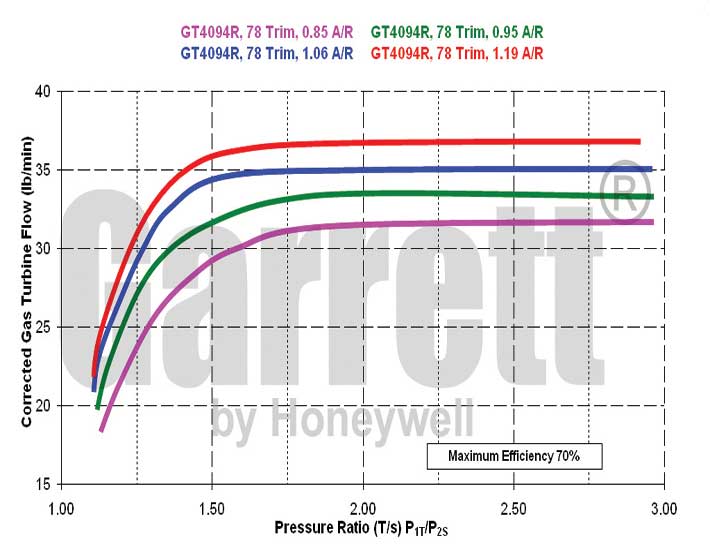

GT4094R Turbine Map

Click for Flange Dimensions

GARRETT P/N: 751470


GT4 Turbine Housing
 GT4 Turbine Housing 3
  • GT4 Divided Inlet
  • .85 / .95 / 1.06 / 1.19 A/R
  • 3" V-Band Outlet

 Turbo P/N: GT4094R-GT4



Specify Air Ratio


RELATED PARTS

Oil Supply
Oil Supply Gasket  GOS-T34-01
  • Gasket Oil Supply (*Inc. with Turbo)

Oil Supply Flange  FOS-T34-01
  • CNC Billet Aluminium Oil Feed Flange

Oil Drain
Oil Drain Gasket  GOD-T34-01
  • Gasket Oil Drain (*Inc. with Turbo)

 Oil Drain Flange FOD-T34-01
  • CNC Billet Aluminium Oil Drain Flange
  • 1/2" NPT Female Thresd

Water
Fitting Kit: Water - M18 x 1.50  FBK-M1805
  • M18 Universal Water Kit
  • M18 Banjo x 3/8 NPT-F (1)
  • M18 x 1.50 Banjo Bolt (1)
  • M18 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting

Exhaust In
 Gasket: Base T4 Divided S/S GT4D-01
  • Stainless Steel Base Gasket (*Inc. with Turbo)

Exhaust Out
5" V-Band Weld Flange  FVB-003
  • 3" V-Band Weld Flange
  • Stainless Steel

 5" V-Band Clamp CVB-003
  • 3" V-Band Clamp
  • Heavy Duty
  • Stainless Steel

Wastegates

 Tial V60 Wastegate Kit T-V60
  • Tial V60 60mm Wastegate Kit
  • High Horsepower Applicationa
  • Flows 330 CFM @ 1psi Differential Pressure
  • Default Silver - .673 Bar (9.77 PSI)
  • Click Here for More Options

Other Options
 Polished Compressor Cover PCC-001
  • Polished Compressor Cover


Applicable GARRETT Part Numbers

751470-5019S, 751470-0019, 751470-19, 751470-5020S, 751470-5021S, 751470-0021, 751470-21, 751470-5022S, 7514470-0022, 7514470-22
