*Garrett offer the turbocharger without an actuator as the old actuator(s) can
be used when fitting to a Skyline - please test the old actuator before use!
|
|
Engine Displacement
1.8L - 3.0L
|
| Features: |
-
Dual Ball Bearing
-
Oil & Water Cooled
-
2 Bolt Compressor Inlet
-
2 Bolt Compressor Outlet
-
Internally Wastegated
-
Inconel Turbine Wheel
-
Ni-Resist Turbine Housing
-
T25 Turbine Inlet Flange - Threaded Holes
-
5 Bolt Turbine Outlet Flange
-
Actuator Not Included
|
| Compressor |
Turbine |
Inducer Ø: 51.2mm
Exducer Ø: 71.0mm
Trim: 52
A/R: 0.60 |
Wheel Ø: 53.8mm
Trim: 76
A/R: 0.64
Wastegated |

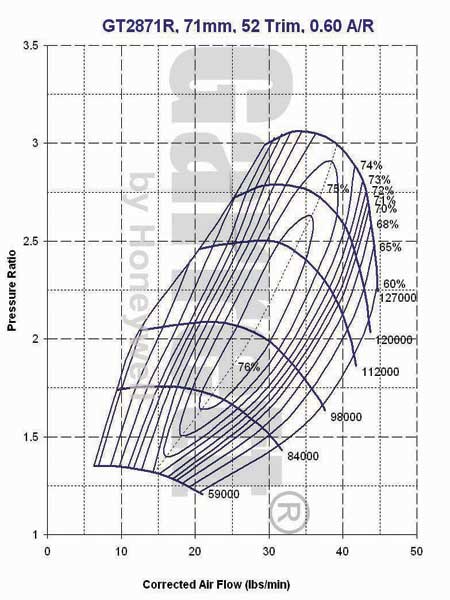

Map
 |

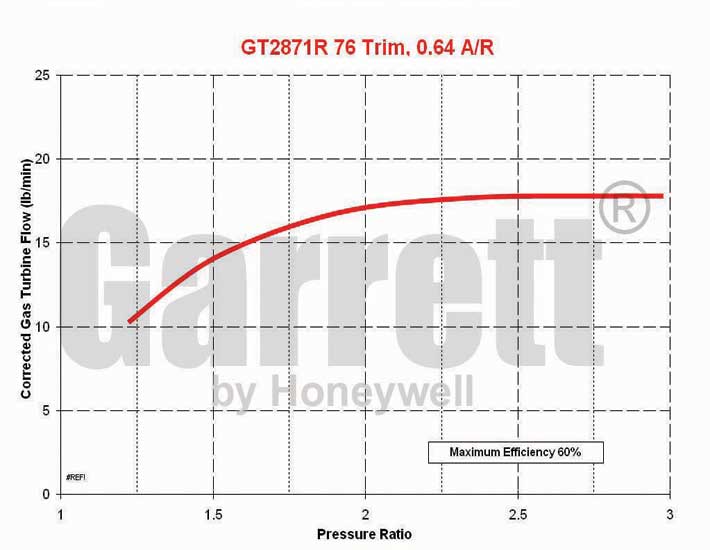

Map
 |
 |
 |
Direct Replacement for RB26DETT R32/R33/R34 GTR
Oil Drain Mod Maybe Req.
|
GARRETT P/N: 707160-0010
|
