Garrett Ball Bearing Turbochargers
GT4294R
Ball Bearing Turbocharger

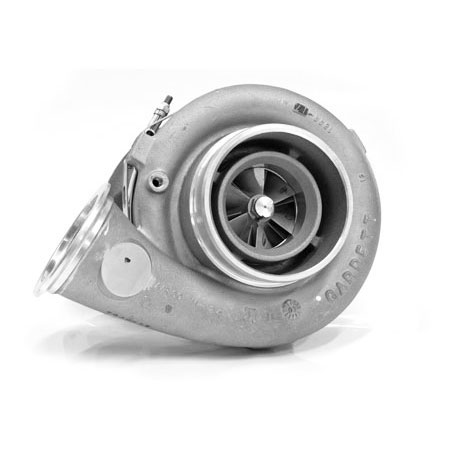

GT4294R Garrett Ball Bearing Turbocharger


Horsepower Rated 500 to 850

Engine Displacement
2.0L - 8.0L

aka GT42R


Features

  • Dual Ball Bearing
  • Oil & Water Cooled
  • .60 A/R Compressor Cover
  • Ported Shroud
  • 5" Compressor Inlet
  • V-Band Compressor Outlet
  • External Wastegate
  • 4" V-Band Turbine Outlet

Compressor

Turbine


Inducer Ø: 70.3mm
Exducer Ø: 94.0mm
Trim: 56
A/R: 0.60


Wheel: Ø 84.0mm
Trim: 84
GT4 Divided
A/R: Optional


Map

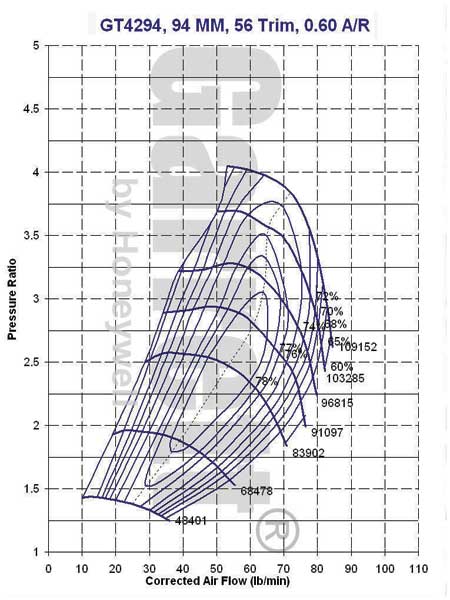

GT4294R Compressor Map


Maps

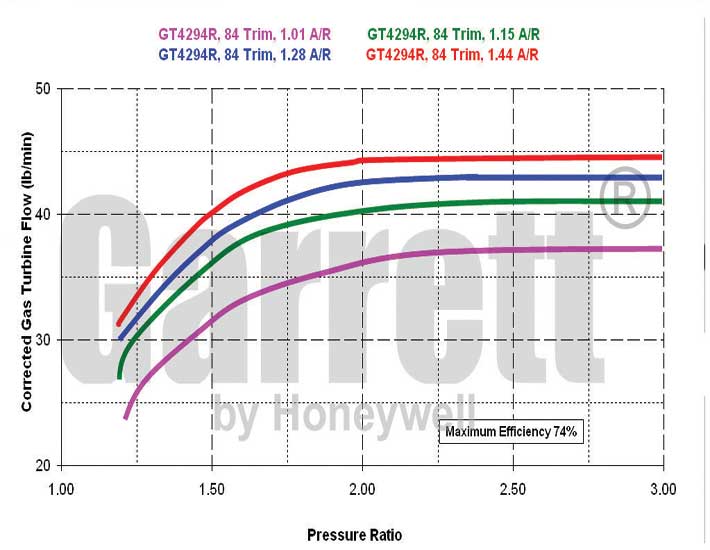

GT4294R Turbine Maps

Click for Flange Dimensions
 GARRETT P/N: 774595

GT4 Turbine Housing
 GT4 Turbine Housing 3
  • GT4 Divided Inlet
  • 1.01 / 1.15 / 1.28 / 1.44 A/R
  • 4" V-Band Outlet

TURBO P/N: GT4294R-GT4


Specify Air Ratio


RELATED PARTS

Oil Supply
Oil Supply Gasket  GOS-T34-01
  • Gasket Oil Supply (*Inc. with Turbo)

Oil Supply Flange  FOS-T34-01
  • CNC Billet Aluminium Oil Feed Flange

Oil Drain
Oil Drain Gasket  GOD-T34-01
  • Gasket Oil Drain (*Inc. with Turbo)

 Oil Drain Flange FOD-T34-01
  • CNC Billet Aluminium Oil Drain Flange
  • 1/2" NPT Female Thresd

Air
 Flange: GT42 Compressor Outlet Adaptor Kit FCO-005K
  • 3.5" Compressor Outlet Flange Kit
  • Slip on 3.5" Hose or Weld to Outlet Pipe
  • Machined to Support an O-Ring
  • Adaptor, O-Ring & V-Band Clamp Included in Kit
  • Typically for GT42, GT42R, GT42RS Turbos

Water
Fitting Kit: Water - M18 x 1.50  FBK-M1805
  • M18 Universal Water Kit
  • M18 Banjo x 3/8 NPT-F (1)
  • M18 x 1.50 Banjo Bolt (1)
  • M18 Copper Washers (2)
  • Suitable for Barb or Flare Nut Fitting

Exhaust In
 Gasket: Base T4 Divided S/S GT4D-01
  • Stainless Steel Base Gasket (*Inc. with Turbo)

Exhaust Out
5" V-Band Weld Flange  FVB-004
  • 4" V-Band Weld Flange - Mild Steel

 5" V-Band Clamp CVB-004
  • 4" V-Band Clamp
  • Heavy Duty
  • Stainless Steel

Wastegates
 Tial V60 Wastegate Kit T-V60
  • Tial V60 60mm Wastegate Kit
  • High Horsepower Applicationa
  • Flows 330 CFM @ 1psi Differential Pressure
  • Default Silver - .673 Bar (9.77 PSI)
  • Click Here for More Options


Applicable GARRETT Part Numbers

451888-5009S, 451888-0009, 451888-9
