Cheetah Mitsubishi EVO 4–9 Bolt-On Turbo Upgrades

Direct Bolt-On Mitsubishi EVO Turbo Performance Upgrade utilizing a 450 Horsepower Garrett Ball-Bearing Core & Compressor Cover coupled with an ATP Turbo USA proprietary high quality cast turbine housing allowing for a direct bolt-on turbo upgrade to the original Mitsubishi Evolution 4, 5, 6, 7, 8, & 9 Turbo exhaust manifold; Contact Procharge Turbochargers Australia.

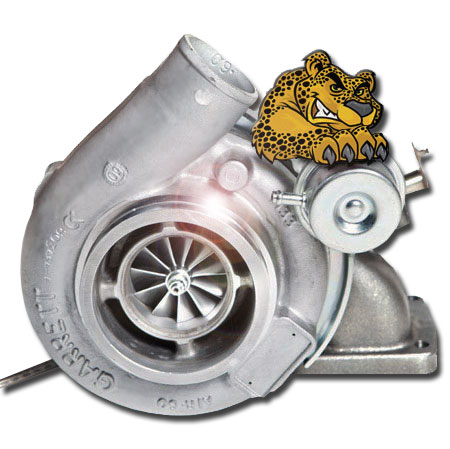

Direct Bolt-On Mitsubishi EVO Turbo Performance Upgrade utilizing a 550 Horsepower Garrett GTX Ball-Bearing Core & Compressor Cover coupled with an ATP Turbo USA proprietary high quality cast turbine housing allowing for a direct bolt-on turbo upgrade to the original Mitsubishi Evolution 4, 5, 6, 7, 8, & 9 Turbo exhaust manifold; Contact Procharge Turbochargers Australia.

Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Bolt-On Turbo Upgrades

Cheetah Mitsubishi EVO 4–9 Bolt-On Turbo Upgrades

Cheetah Stealth Series bolt-on turbo upgrades for the Mitsubishi EVO 4–9, built around a Garrett dual ball bearing cartridge with options up to 550 hp. Enquire for pricing and fitment advice.

Part No. C-GT3071R-EVO, C-GT3076R-EVO, C-GT3582R-EVO, C-GTX3071R-EVO, C-GTX3076R-EVO, C-GTX3582R-EVO

Power Up to 550 HP

Engine Size

Bearing Dual Ball Bearing

Wastegate Internal Wastegate

Suits MITSUBISHI EVO 4, 5, 6, 7, 8, 9 TURBO upgrade

Pricing & availability on request

Tell us your vehicle and power goals – we’ll confirm fitment, options, pricing and lead time. We match or better any genuine advertised price.

Enquire about this product (03) 8015 6103

Key features

Specifications

Part / model number	C-GT3071R-EVO, C-GT3076R-EVO, C-GT3582R-EVO, C-GTX3071R-EVO, C-GTX3076R-EVO, C-GTX3582R-EVO
Power rating (from)	HP
Power rating (up to)	550 HP
Engine size
Bearing	Dual Ball Bearing
Cooling
Wastegate	Internal Wastegate
Fuel
Suits	MITSUBISHI EVO 4, 5, 6, 7, 8, 9 TURBO upgrade
Compressor inducer
Compressor exducer
Compressor trim
Compressor A/R
Turbine wheel
Turbine trim
Turbine A/R
Turbine flanges

Product details & options

Suits MITSUBISHI EVO 4, 5, 6, 7, 8, 9 TURBO upgrade

Available options

Model	Power	Part no.
GT3071R	Up to 450 HP	C-GT3071R-EVO
GT3076R	Up to 450 HP	C-GT3076R-EVO
GT3582R	Up to 450 HP	C-GT3582R-EVO
GTX3071R	Up to 550 HP	C-GTX3071R-EVO
GTX3076R	Up to 550 HP	C-GTX3076R-EVO
GTX3576R	Up to 550 HP	C-GTX3582R-EVO
GTX3582R	Up to 550 HP	C-GTX3582R-EVO

GT3071R – up to 450 HP

EVO 4 5 6 7 8 9 GT3071R Turbo

MITSUBISHI EVO 4, 5, 6, 7, 8, 9 TURBO UPGRADE

DIRECT BOLT-ON STOCK LOCATION!

ACCELERATION! MUSCLE! STEALTH!

Features:

Bolts onto the Stock Location of the Orignial Turbo
GT3071R Garrett® Dual Ball Bearing CHRA
CNC Machined Compressor Cover to Suit EVO 4-9
High Effiency Compressor Cover
Optional Stock or 4″ Inlet
Cast Turbine Housing CNC Machined to Suit EVO 4-9
Internally Wastegated Twin-Scroll Design Turbine Housing
Larger A/R Turbine = Less Back-Pressure = More Power
High Pressure Actuator for Stable Boost Control
Oil & Water Components Fit OEM as Close as Possible
Stealth Appearance with BOOST NOW!


MItsubishi EVO

evo-01.jpg https://procharge.com.au/websiteprocharge/images/stories/simpleslideshow/evo/evo-01.jpg
evo-02.jpg https://procharge.com.au/websiteprocharge/images/stories/simpleslideshow/evo/evo-02.jpg
evo-04.jpg https://procharge.com.au/websiteprocharge/images/stories/simpleslideshow/evo/evo-04.jpg
evo-05.jpg https://procharge.com.au/websiteprocharge/images/stories/simpleslideshow/evo/evo-05.jpg
evo-03.jpg https://procharge.com.au/websiteprocharge/images/stories/simpleslideshow/evo/evo-03.jpg

		After fitting a higher flowing turbocharger it is crucial the vehicle be dyno-tuned by a mechanic who is experienced with tuning turbocharged vehicles BEFORE driving hard.
Air fuel ratio in particular requires monitoring whilst adjusting boost. The mechanic should set the boost at a safe level & determine what if any modifications are required to further increase boost pending your requirement!

		More In, More Out, More Flow, More Go! If possible, it is best to try and retain the 3″ inlet together with a high flowing 3″ dump pipe / exhaust.
A 3″ dump pipe and larger inlet is critical for reaching peak efficiency, quicker spool-up plus increased & sustained top end power using a cheetah GT Hybrid Stealth Turbo.

P/N: C-GT3071R-EVO

Every kit shipped includes these following accessories in addition to the ready to install turbo:

Steel braided oil feed line assembly with banjo at the turbo and at the cylinder head
Oil drain gasket and bolts to attach to stock oil drain tube to the turbo
Banjo bolt and crush washers to attach to stock rear coolant pipe
Steel braided coolant feed line assembly on front of turbo
10mm studs and nuts for turbo to manifold (4)
10mm studs and nuts for turbo to 02 housing (5)
2.5″ compressor discharge elbow (replaces the stock 1.75″ J-pipe and rubber hose)

RELATED PARTS

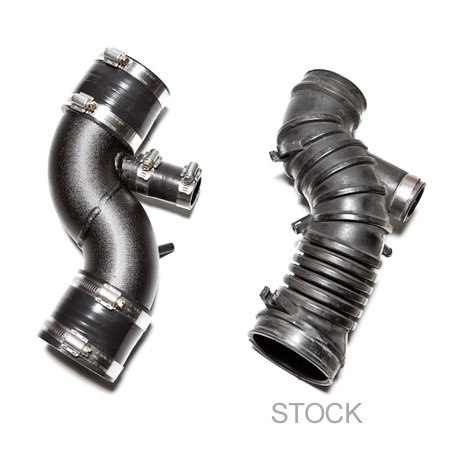

Air Intake

PCT-VEVO-110

Hi-Flow Compressor 3″ Inlet for Evo 8/9 (Evo 4-9) Turbo
Light but Rigid Aluminum Tig Welded
Wrinkle Black Powder-Coated
Specify Inlet Ø: 2½” Stock or 4″ Ported Shroud

Exhaust Out

PCT-FLS-112

Mitsubishi Evolution 7, 8 & 9 Flange Plate
CNC Machined from Solid Billet Mild Steel
3″ Primary Outlet, 1¾” Wastegate Outlet
Optional: Use 4″ Oval Tube

Fuel Injectors

PCT-FUL-032

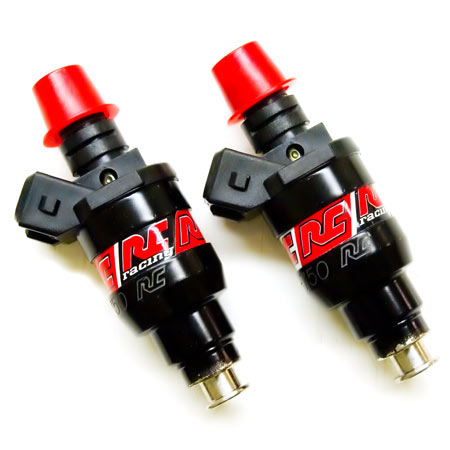

750cc Injectors – Set of 4
Low Impedence, EVO 8/9 Fitment
RC Engineering

PCT-FUL-031

1000cc Injectors – Set of 4
Low Impedence, EVO 8/9 Fitment
RC Engineering

PCT-FUL-038

Bosch 1200cc Injectors – Set of 4
Direct replacement Evo 6/7/8/9*
*Requires Correct Ø O-Ring & Plug
Low Impedence
Common on EVO 400 – 800 HP
Stock ECU or Standalone EMS

PCT-FUL-039

Bosch 1600cc Injectors – Set of 4
Direct replacement Evo 6/7/8/9*
*Requires Correct Ø O-Ring & Plug
Low Impedence
Common on EVO 500 – 800 HP
Stock ECU or Standalone EMS

No Image

PCT-FUL-040

Top Injector O-Ring for Feed Side (1)
Fits into Fuel Rail of Evo 6/7/8/9 Injector
Special Material and Diameter
Replaces Factory Unit & Seals Proper on Evo Fuel Rail

GT3076R – up to 450 HP

EVO 4 5 6 7 8 9 GT3076R Turbo
